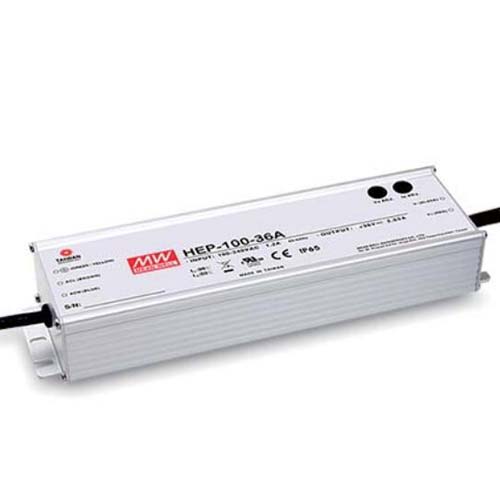

HEP-100
| Input Voltage | 220×68×38.8mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 8.34A, 24V 4.0A |
| Output Current | 100W |
| Power | 0.95 |
| Zones | 93% |
| Size | IP65/IP68 |
| Working Temperature | |
| Download |
|
Model: HEP-100-12, HEP-100-24
Built-in active PFC function. High efficiency up to 93%.Wide working temperature range -55~+70℃. Aluminium case and filled with heat-conducted silicon.Operating altitude up to 5000 meters. Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment. 6 years warranty

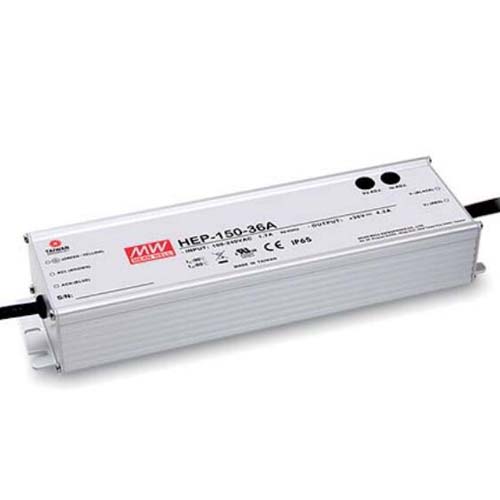

HEP-150
| Input Voltage | 228×68×38.8mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 12.5A, 24V 6.3A |
| Output Current | 150W |
| Power | 0.95 |
| Zones | 93% |
| Size | IP65/IP68 |
| Working Temperature | |
| Download |
|
Model: HEP-150-12, HEP-150-24
Built-in active PFC function. High efficiency up to 93%.Wide working temperature range -55~+70℃. Aluminium case and filled with heat-conducted silicon.Operating altitude up to 5000 meters. Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment. 6 years warranty

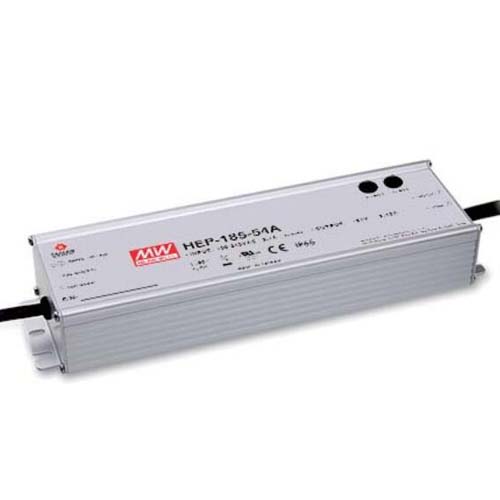

HEP-185
| Input Voltage | 228×68×38.8mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 13.0A, 24V 7.8A |
| Output Current | 185W |
| Power | 0.95 |
| Zones | 93% |
| Size | IP65/IP68 |
| Working Temperature | |
| Download |
|
Model: HEP-185-12, HEP-185-24
Built-in active PFC function. High efficiency up to 93%.Wide working temperature range -55~+70℃. Aluminium case and filled with heat-conducted silicon.Operating altitude up to 5000 meters. Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment. 6 years warranty

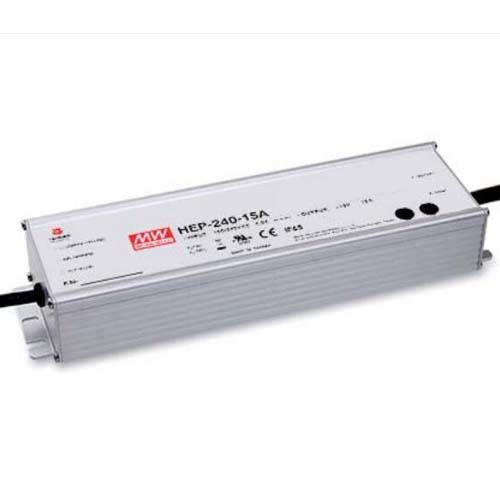

HEP-240
| Input Voltage | 244.2×68×38.8mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 16.0A, 24V 10.0A |
| Output Current | 240W |
| Power | 0.95 |
| Zones | 93% |
| Size | IP65/IP68 |
| Working Temperature | |
| Download |
|
Model: HEP-240-12, HEP-240-24
Built-in active PFC function. High efficiency up to 93%.Wide working temperature range -55~+70℃. Aluminium case and filled with heat-conducted silicon.Operating altitude up to 5000 meters. Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment. 6 years warranty

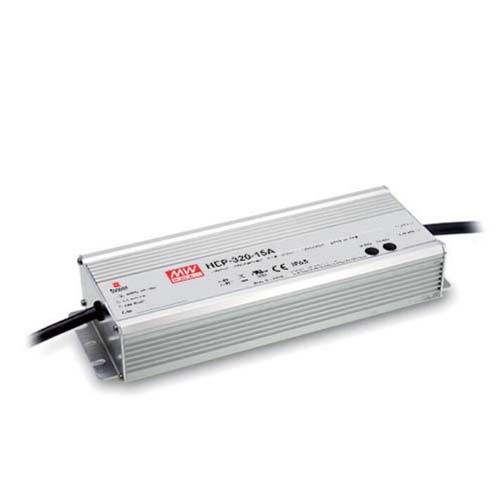

HEP-320
| Input Voltage | 252×90×43.8mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 22.0A, 24V 13.34A |
| Output Current | 320W |
| Power | 0.95 |
| Zones | 93% |
| Size | IP65/IP68 |
| Working Temperature | |
| Download |
|
Model: HEP-32012, HEP-320-24
Built-in active PFC function. High efficiency up to 93%.Wide working temperature range -55~+70℃. Aluminium case and filled with heat-conducted silicon.Operating altitude up to 5000 meters. Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment. 6 years warranty
HEP-600
| Input Voltage | 280×144×48.5mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 40.0A, 24V 25.0A |
| Output Current | 600W |
| Power | 0.95 |
| Zones | 96% |
| Size | IP65/IP68 |
| Working Temperature | |
| Download |
|
Model: HEP-600-12, HEP-600-24
Built-in active PFC function. High efficiency up to 96%.Wide working temperature range -55~+70℃. Aluminium case and filled with heat-conducted silicon.Operating altitude up to 5000 meters. Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment. 6 years warranty
