T Series
T1 2.4G Dimming Touch Controller
| Input Voltage | 5VDC(Built-in Lithium battery) |
| Output Voltage | 5VDC |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 8 Zones |
| Size | L145×W55×H22mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T3-CV,T3-CC receiver and WiFi-102, WiFi-103 controller. Remote control distance 30M.
T2 2.4G Color Temperature Touch Controller
| Input Voltage | 5VDC(Built-in Lithium battery) |
| Output Voltage | 5VDC |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 1 Zone |
| Size | L145×W55×H22mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T3-CV,T3-CC receiver and WiFi-102, WiFi-103 controller. Remote control distance 30M.
T2M 2.4G Color Temperature Touch Controller
| Input Voltage | 5VDC(Built-in Lithium battery) |
| Output Voltage | 5VDC |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 8 Zones |
| Size | L145×W55×H22mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T3-CV,T3-CC receiver. Remote control distance 30M.
T3 2.4G RGB Touch Controller
| Input Voltage | 5VDC(Built-in Lithium battery) |
| Output Voltage | 5VDC |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 10 Zones |
| Size | L145×W55×H22mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T3-CV,T3-CC,T3-5A receiver.Remote control distance 30M.
T3M 2.4G RGB Touch Controller
| Input Voltage | 5VDC(Built-in Lithium battery) |
| Output Voltage | 5VDC |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 10 Zones |
| Size | L145×W55×H22mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T1,T2,T3 remote and WiFi-102, WiFi-103 controller.
T3X 2.4G RGB Touch Controller
| Input Voltage | 5VDC(Built-in Lithium battery) |
| Output Voltage | 5VDC |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 1 Zone |
| Size | L145×W55×H22mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T3-CV,T3-CC,T3-5A receiver.Remote control distance 30M. DIY Key are available

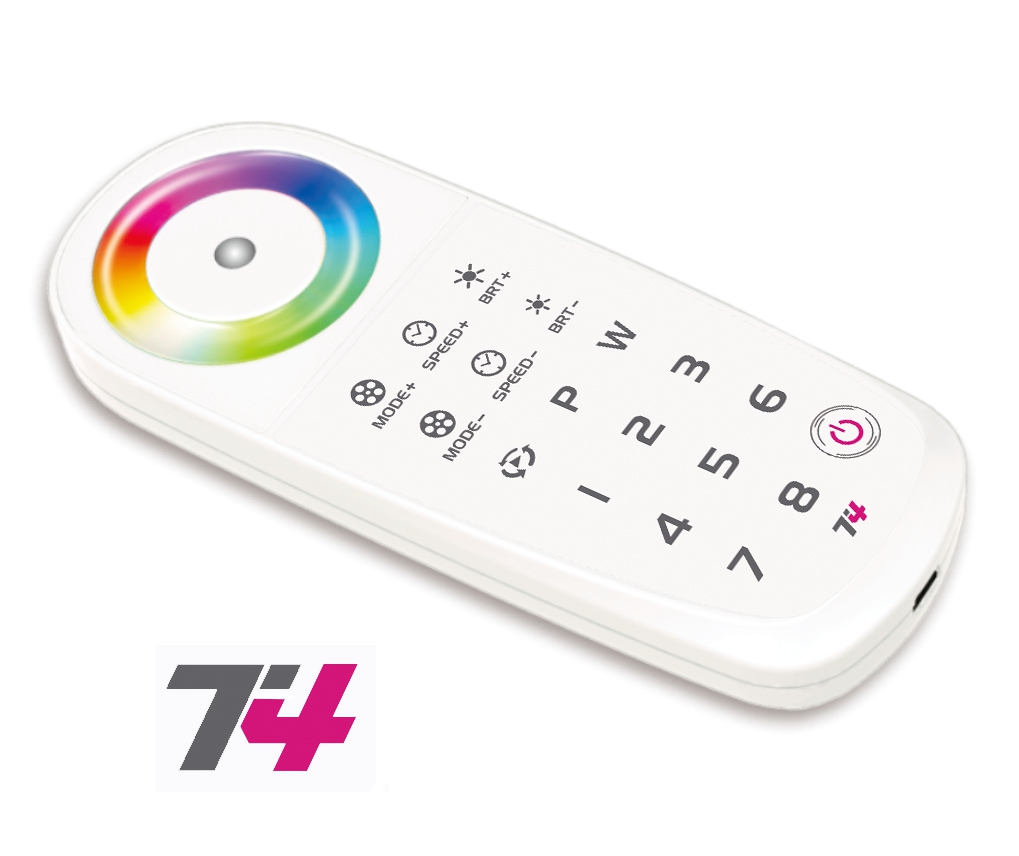

T4 2.4G RGBW Touch Controller
| Input Voltage | 5VDC(Built-in Lithium battery) |
| Output Voltage | 5VDC |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 8 Zones |
| Size | L145×W55×H22mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T4-CV,T4-CC receiver. Remote control distance 30M. It integrates the function of T3,T3M,T3X
T3-5A Constant Voltage Receiver
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 5A×3CH，15A Max |
| Power | 180W(12V),360W(24V) |
| Zones | NA |
| Size | L175×W44×H30mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T3,T3M,T3X
T3-CV Constant Voltage Receiver
| Input Voltage | 5V/12V/24V DC |
| Output Voltage | 5V/12V/24V DC |
| Output Signal | NA |
| Output Current | 5A×3CH，15A Max |
| Power | 75W（5V),180W(12V),360W(24V) |
| Zones | NA |
| Size | L175×W44×H30mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T1,T2,T2M,T3,T3M,T3X
T3-CC Constant Current Receiver
| Input Voltage | 12～48V DC |
| Output Voltage | DC3V～DC46V |
| Output Signal | NA |
| Output Current | 350/700/1050mA×3CH |
| Power | 1.05W～48.3W×3CH, 144.9W Max |
| Zones | NA |
| Size | 350/700/1050mA×3CH |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with T1,T2,T2M,T3,T3M,T3X
