MINI Series

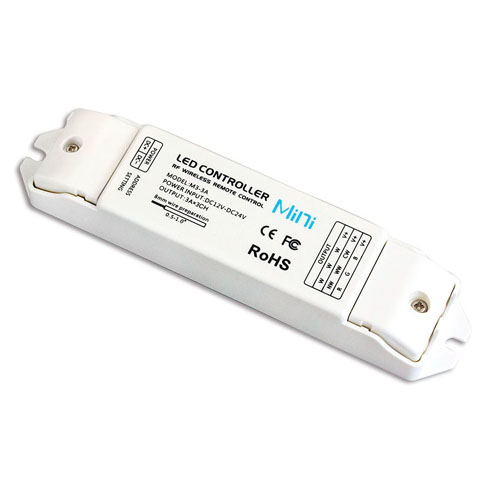

M3-3A Constant Voltage Receiver
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 3A×3CH，9A Max |
| Power | 108W(12V),216W(24V) |
| Zones | NA |
| Size | L135×W30×H20mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
Compatible with M1,M2,M3,M5,M6,M7
M7+M3-3A RGB Controller
| Input Voltage | M7+M3-3A RGB Controller |
| Output Voltage | 3VDC |
| Output Signal | RF 433.92MHz |
| Output Current | NA |
| Power | NA |
| Zones | 1 Zone |
| Size | L105×W58×H10mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
M7+M3-3A RGB Controller per kit.One to one unique ID control.Color-save is available.Remote control distance 40M.
M6+M3-3A RGB Controller
| Input Voltage | 3VDC(Battery CR2032) |
| Output Voltage | 3VDC |
| Output Signal | RF 433.92MHz |
| Output Current | NA |
| Power | NA |
| Zones | 1 Zone |
| Size | L105×W58×H10mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
M6+M3-3A RGB Controller per kit.One to one unique ID control. Remote control distance 40M.
M5+M3-3A Color Temperature Controller
| Input Voltage | 3VDC(Battery CR2032) |
| Output Voltage | 3VDC |
| Output Signal | RF 433.92MHz |
| Output Current | NA |
| Power | NA |
| Zones | 1 Zone |
| Size | L105×W58×H10mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
M5+M3-3A Color Temperature Controller per kit.One to one unique ID control. Remote control distance 40M.
M3+M3-3A RGB Controller
| Input Voltage | 3VDC(Battery CR2032) |
| Output Voltage | 3VDC |
| Output Signal | RF 433.92MHz |
| Output Current | 1 Zone |
| Power | NA |
| Zones | NA |
| Size | L105×W58×H10mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
M3+M3-3A RGB Controller per kit.One to one unique ID control. Remote control distance 40M.
M2+M3-3A Color Temperature Controller
| Input Voltage | 3VDC(Battery CR2032) |
| Output Voltage | 3VDC |
| Output Signal | RF 433.92MHz |
| Output Current | NA |
| Power | NA |
| Zones | 1 Zone |
| Size | L105×W58×H10mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
M2+M3-3A Color Temperature Controller per kit.One to one unique ID control. Remote control distance 40M.
M1+M3-3A Dimming Controller
| Input Voltage | 3VDC(Battery CR2032) |
| Output Voltage | 3VDC |
| Output Signal | RF 433.92MHz |
| Output Current | NA |
| Power | NA |
| Zones | 1 Zone |
| Size | L105×W58×H10mm |
| Working Temperature | -30℃～55℃ |
| Download |
|
M1+M3-3A Dimming Controller per kit.One to one unique ID control. Remote control distance 40M.
