GL-GLDIM104
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 5A×2CH，10A Max |
| Power | 120W(12V),240W(24V) |
| Zones | 1 zone |
| Size | L86xW86xH33mm |
| Working Temperature | -20-60℃ |
| Download |
|

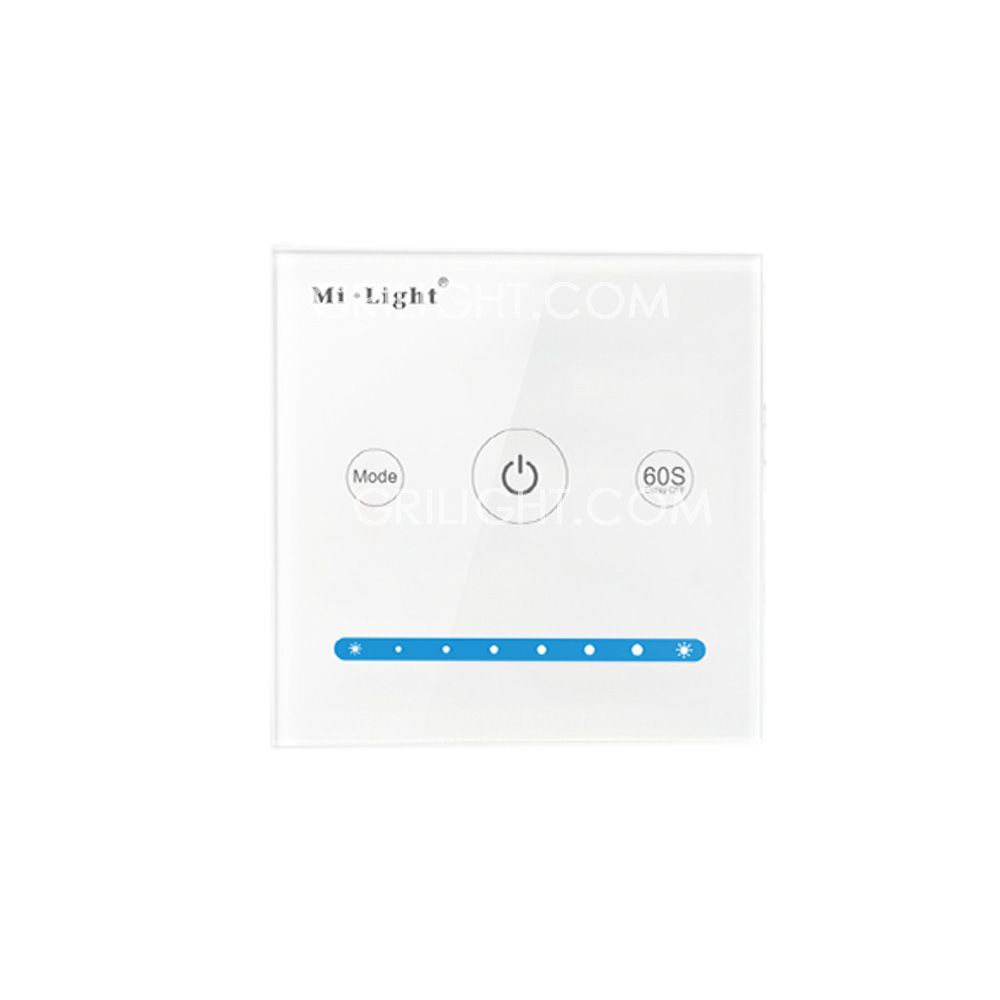

MiLight P1 Dimming Touch Panel. Wall mounted type. It can connect to led strip directly. No remote required. No wifi&bluetooth function
GL-GLCT204
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 5A×2CH，10A Max |
| Power | 120W(12V),240W(24V) |
| Zones | 1 zone |
| Size | L86xW86xH33mm |
| Working Temperature | -20-60℃ |
| Download |
|

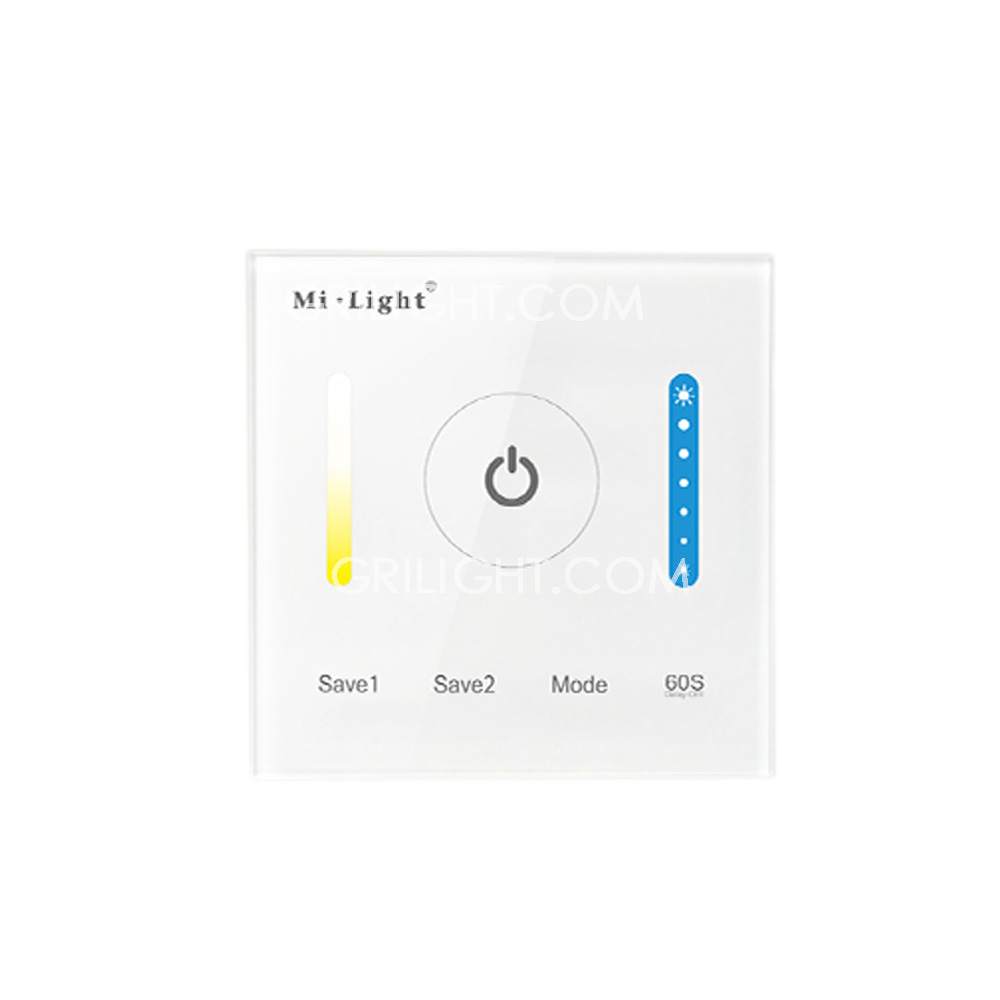

Milight P2 CT Touch Panel. Wall mounted type. It can connect to led strip directly. No remote required. No wifi&bluetooth function
GL-GLRGBCT704
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 5A×5CH，15A Max |
| Power | 180W(12V),360W(24V) |
| Zones | 1 zone |
| Size | L86xW86xH33mm |
| Working Temperature | -20-60℃ |
| Download |
|

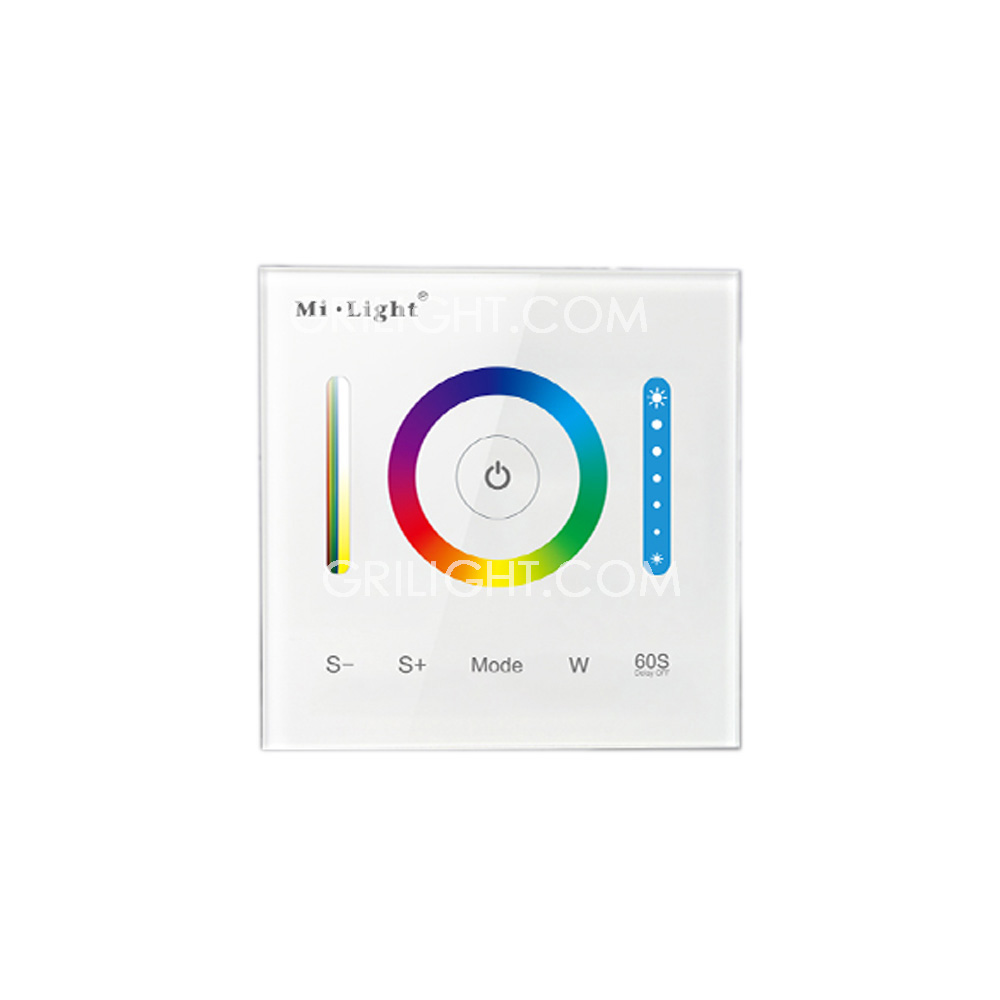

Milight P3 RGB+CT Touch Panel. Wall mounted type. It can connect to led strip directly. No remote required. No wifi&bluetooth function
GL-GLDIM105
| Input Voltage | 90-110VAC or 180-240VAC |
| Output Voltage | NA |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 zones |
| Size | L86xW86xH33mm |
| Working Temperature | -20-60℃ |
| Download |
|
MiLight T1 Dimming Touch Panel Remote. Wall mounted type. It worked as only a remote to the controller. Can control Mi Light sereis dimming controller. Control distance 30mtrs
GL-GLCT205
| Input Voltage | 90-110VAC or 180-240VAC |
| Output Voltage | NA |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 zones |
| Size | L86xW86xH33mm |
| Working Temperature | -20-60℃ |
| Download |
|

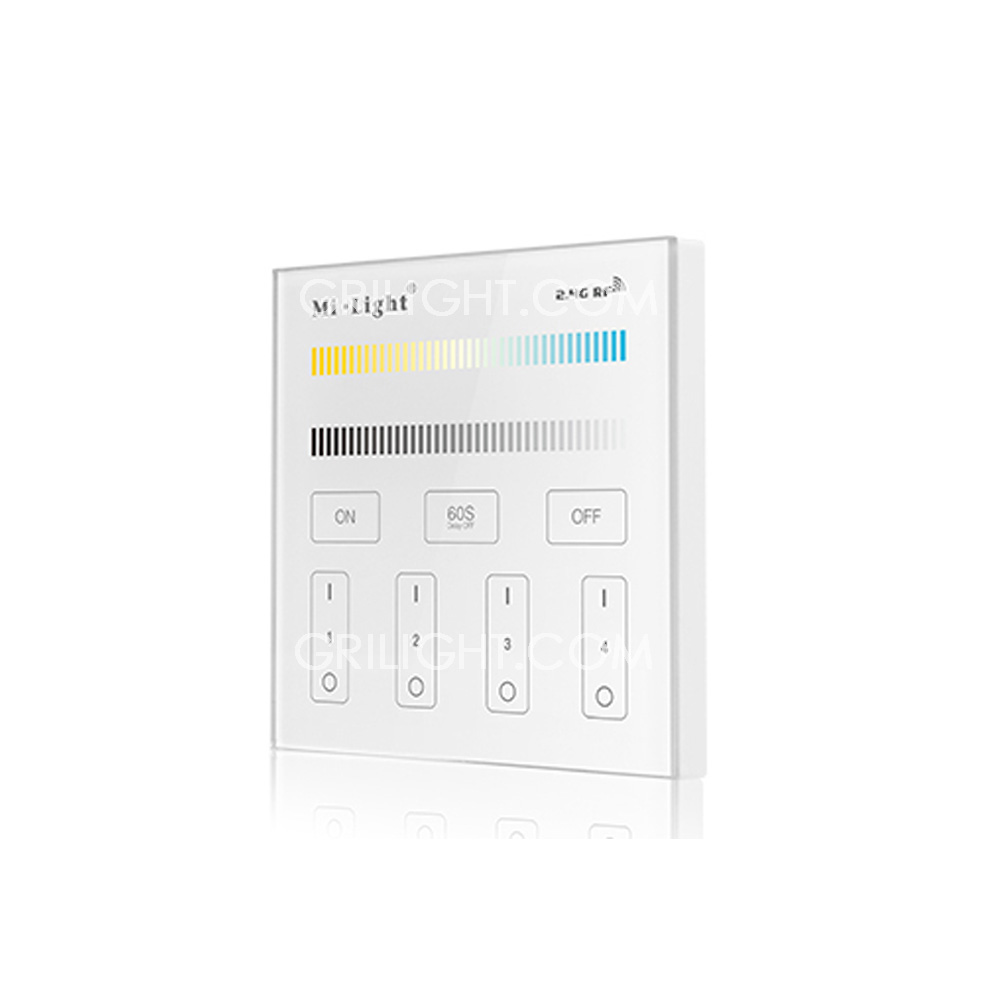

MiLight T2 CT Touch Panel Remote. Wall mounted type. It worked as only a remote to the controller. Can control Mi Light sereis CT controller and bulbs. Control distance 30mtrs
GL-GLRGBW405
| Input Voltage | 90-110VAC or 180-240VAC |
| Output Voltage | NA |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 zones |
| Size | L86xW86xH33mm |
| Working Temperature | -20-60℃ |
| Download |
|

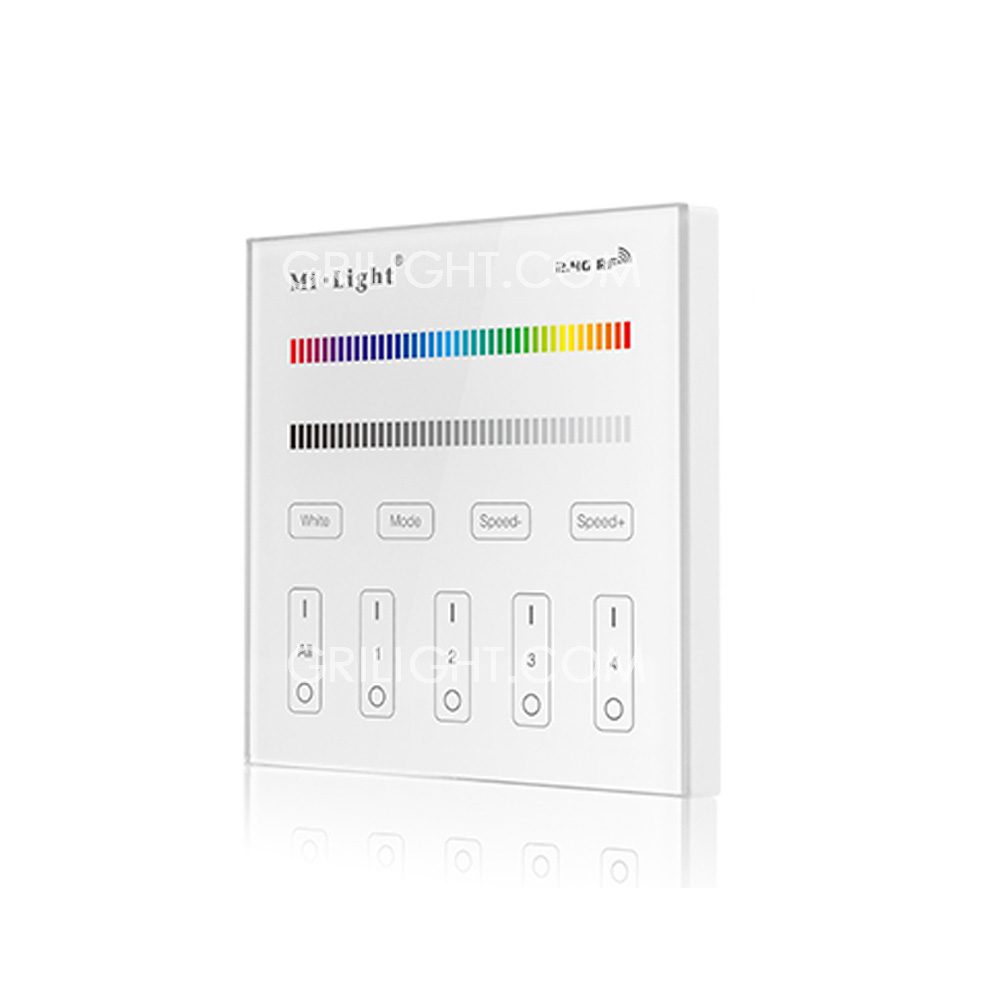

MiLight T3 RGB/RGBW Touch Panel Remote. Wall mounted type. It worked as only a remote to the controller. Can control Mi Light sereis RGB/RGBW controller and bulbs. Control distance 30mtrs
GL-GLRGBCT705
| Input Voltage | 90-110VAC or 180-240VAC |
| Output Voltage | NA |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 zones |
| Size | L86xW86xH33mm |
| Working Temperature | -20-60℃ |
| Download |
|

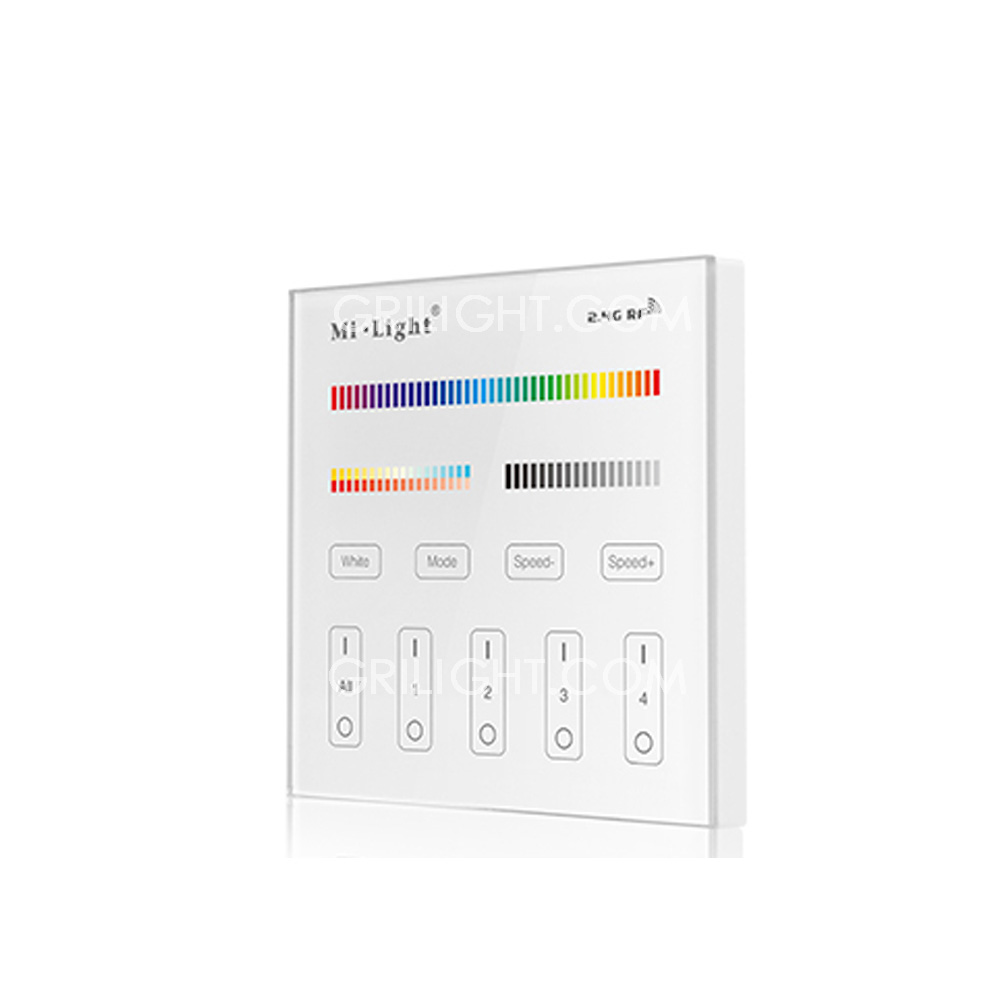

MiLight T4 RGB+CT Touch Panel Remote. Wall mounted type. It worked as only a remote to the controller. Can control Mi Light sereis RGB+CT controller and bulbs. Control distance 30mtrs
GL-GLDIM106
| Input Voltage | 3V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 zones |
| Size | L86xW86xH20mm |
| Working Temperature | -20-60℃ |
| Download |
|

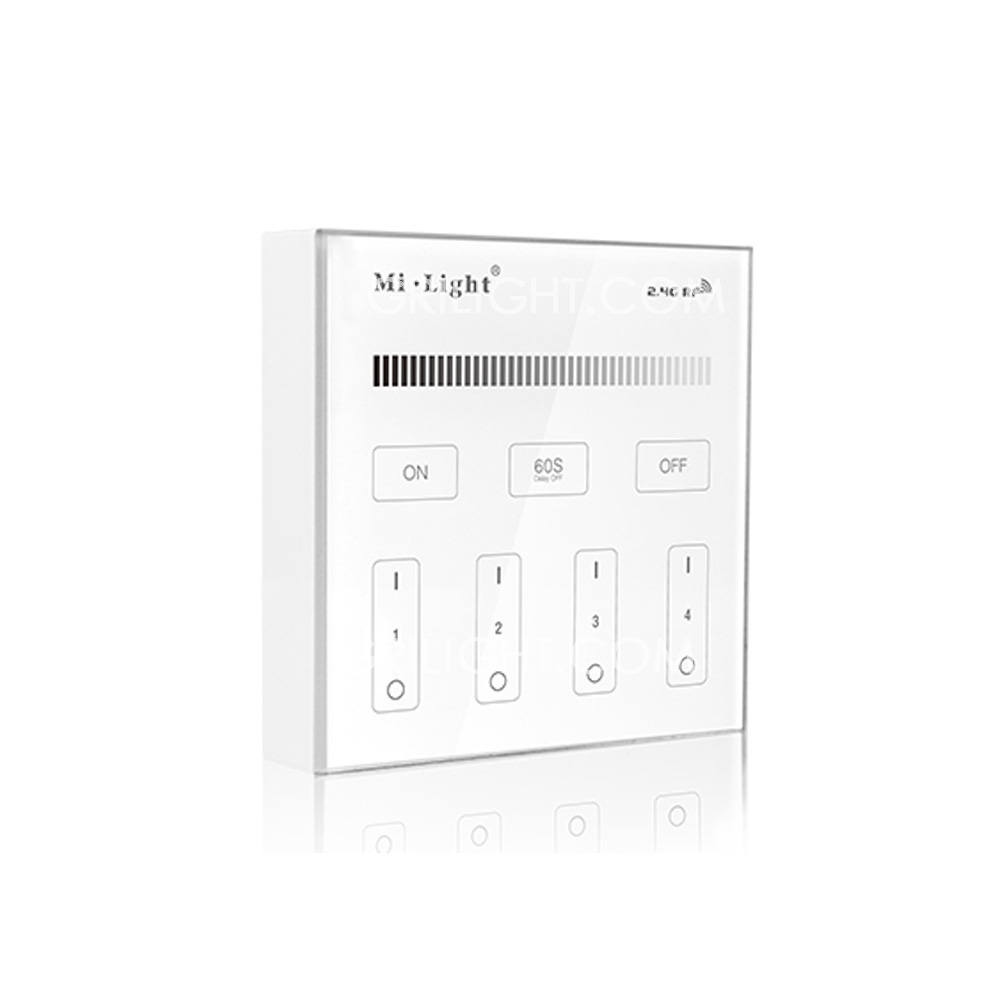

MiLight B1 Dimming Touch Panel Remote. Wall mounted type. It worked as only a remote to the controller. Can control Mi Light sereis dimming controller. Control distance 30mtrs. Battery powered
GL-GLCT206
| Input Voltage | 3V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 zones |
| Size | L86xW86xH20mm |
| Working Temperature | -20-60℃ |
| Download |
|

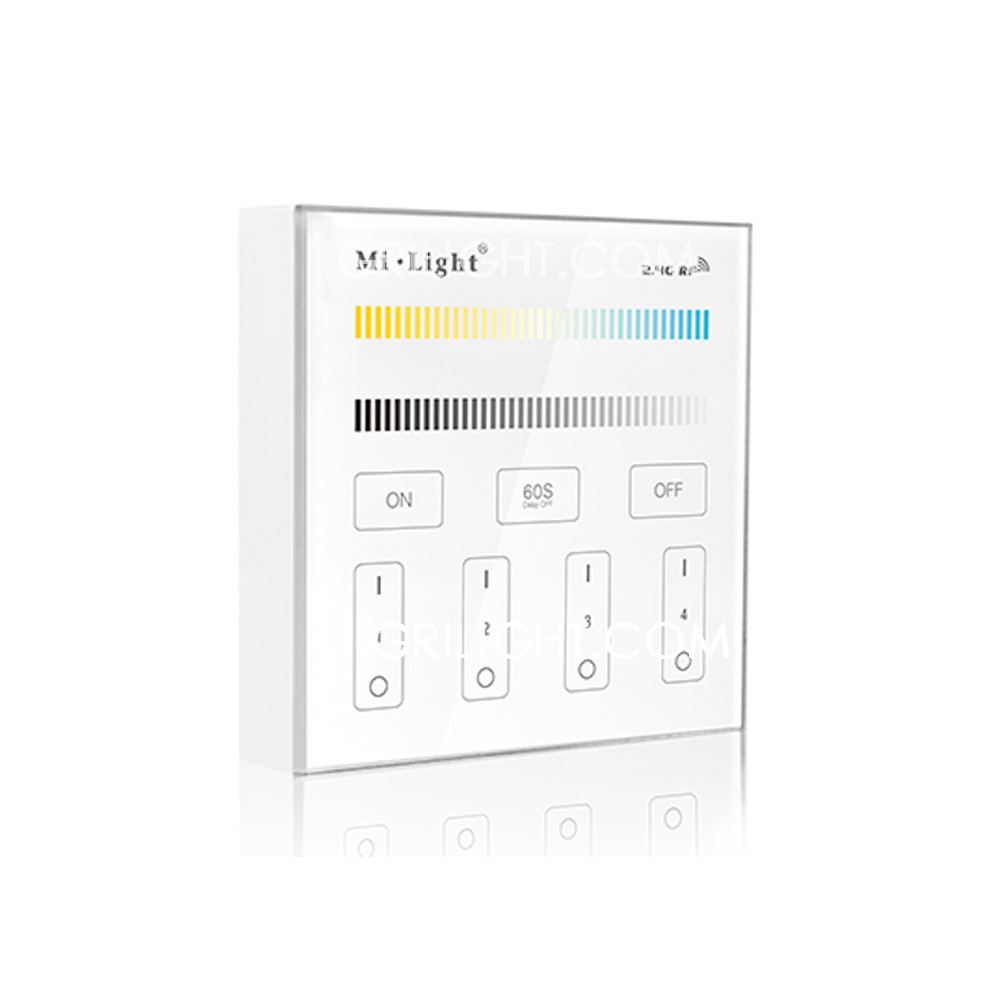

MiLight B2 CT Touch Panel Remote. Wall mounted type. It worked as only a remote to the controller. Can control Mi Light sereis CT controller and bulbs. Control distance 30mtrs. Battery powered
GL-GLRGBW406
| Input Voltage | 3V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 zones |
| Size | L86xW86xH20mm |
| Working Temperature | -20-60℃ |
| Download |
|

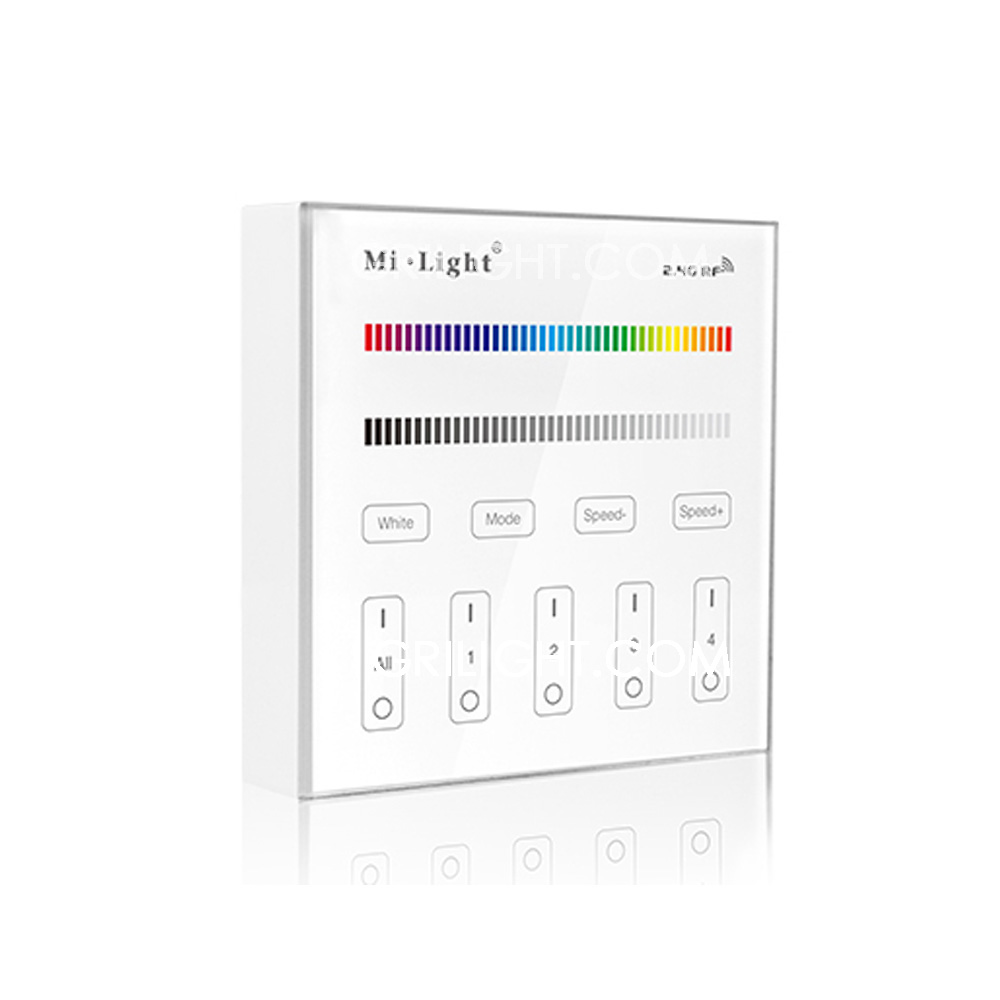

MiLight B3 RGB/RGBW Touch Panel Remote. Wall mounted type. It worked as only a remote to the controller. Can control Mi Light sereis RGB/RGBW controller and bulbs. Control distance 30mtrs. Battery powered
GL-GLRGBCT706
| Input Voltage | 3V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 zones |
| Size | L86xW86xH20mm |
| Working Temperature | -20-60℃ |
| Download |
|

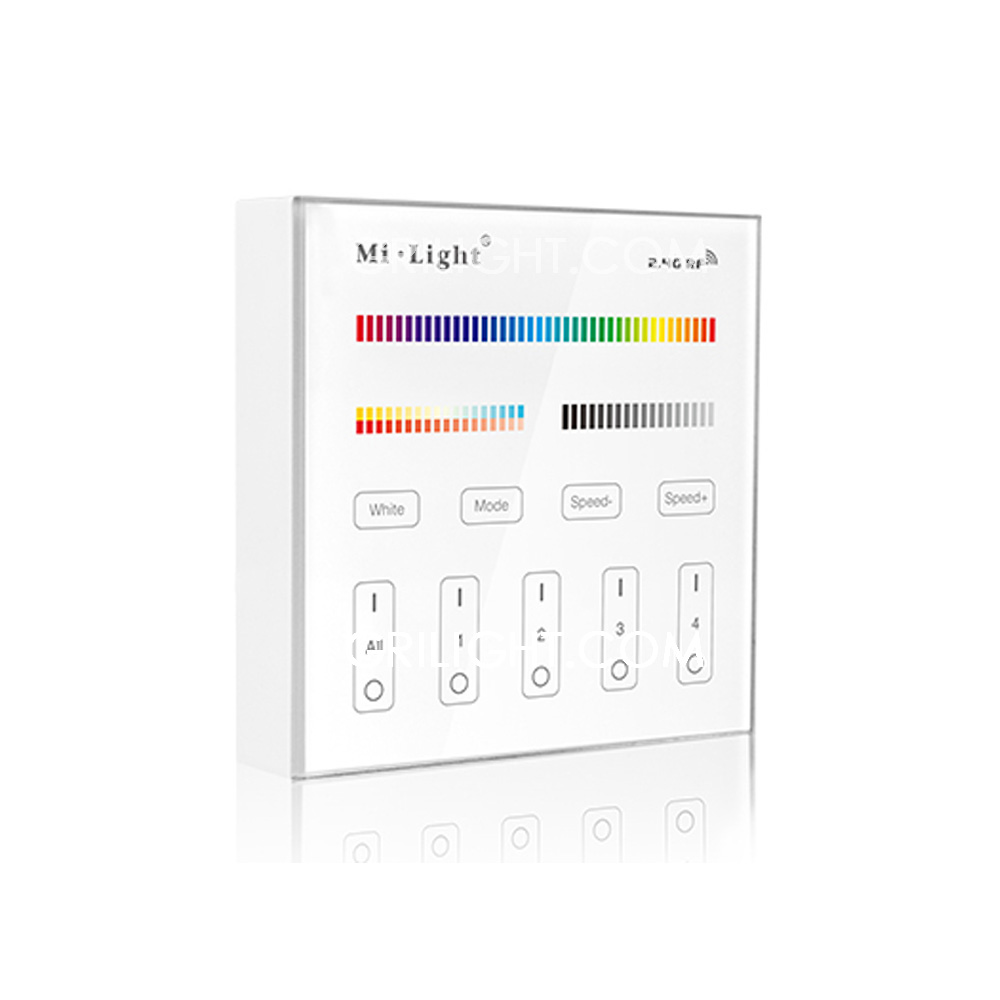

MiLight B4 RGB+CT Touch Panel Remote. Wall mounted type. It worked as only a remote to the controller. Can control Mi Light sereis RGB+CT controller and bulbs. Control distance 30mtrs. Battery powered
GL-GLWF501
| Input Voltage | 5.0V(Rechargable battery or USB) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | 500mA |
| Power | NA |
| Zones | 4 Zones |
| Size | L90xW67xH15mm |
| Working Temperature | -20-60℃ |
| Download |
|

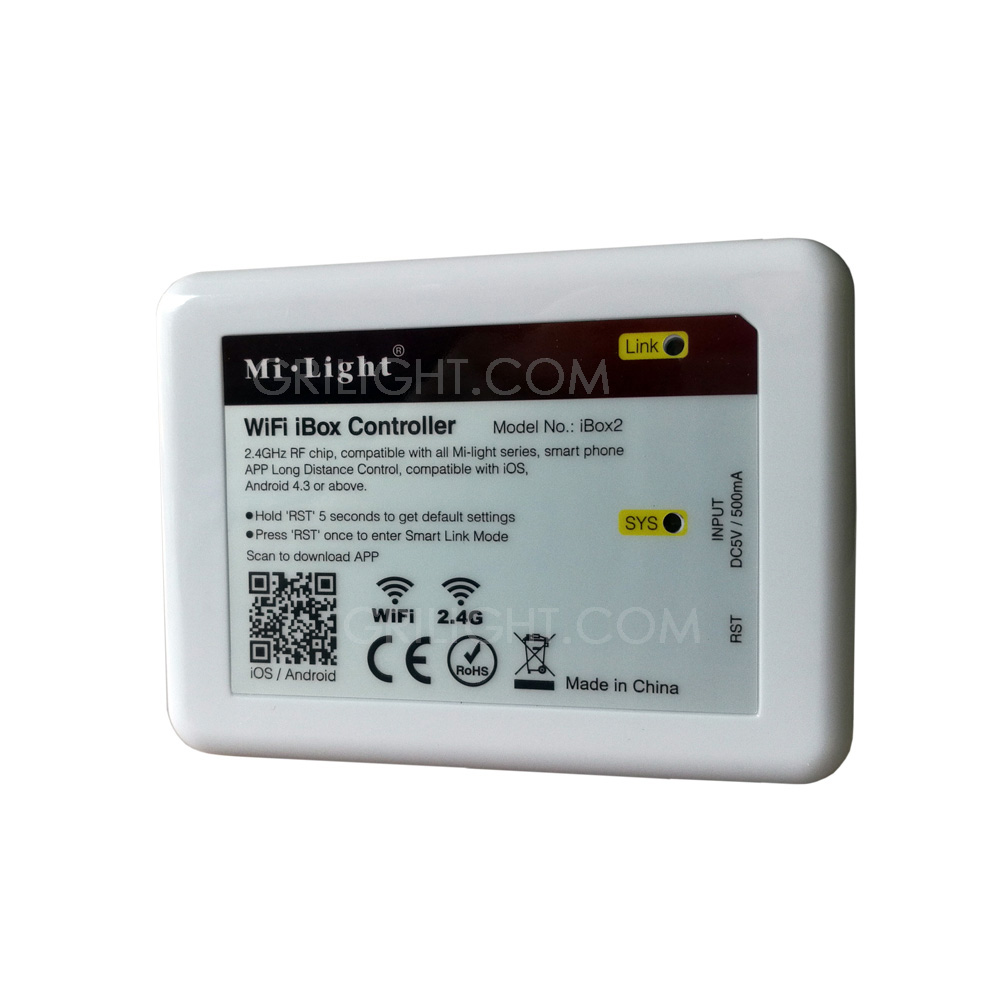

MiLight IBOX2 WIFI Controller/WIFI BOX. Apply to all Mi Light series controllers, it's worked as a center to connect smart phone and controller
GL-GLWF502
| Input Voltage | 5.0V(Rechargable battery or USB) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | 500mA |
| Power | NA |
| Zones | 4 Zones |
| Size | D70xH68mm |
| Working Temperature | -20-60℃ |
| Download |
|

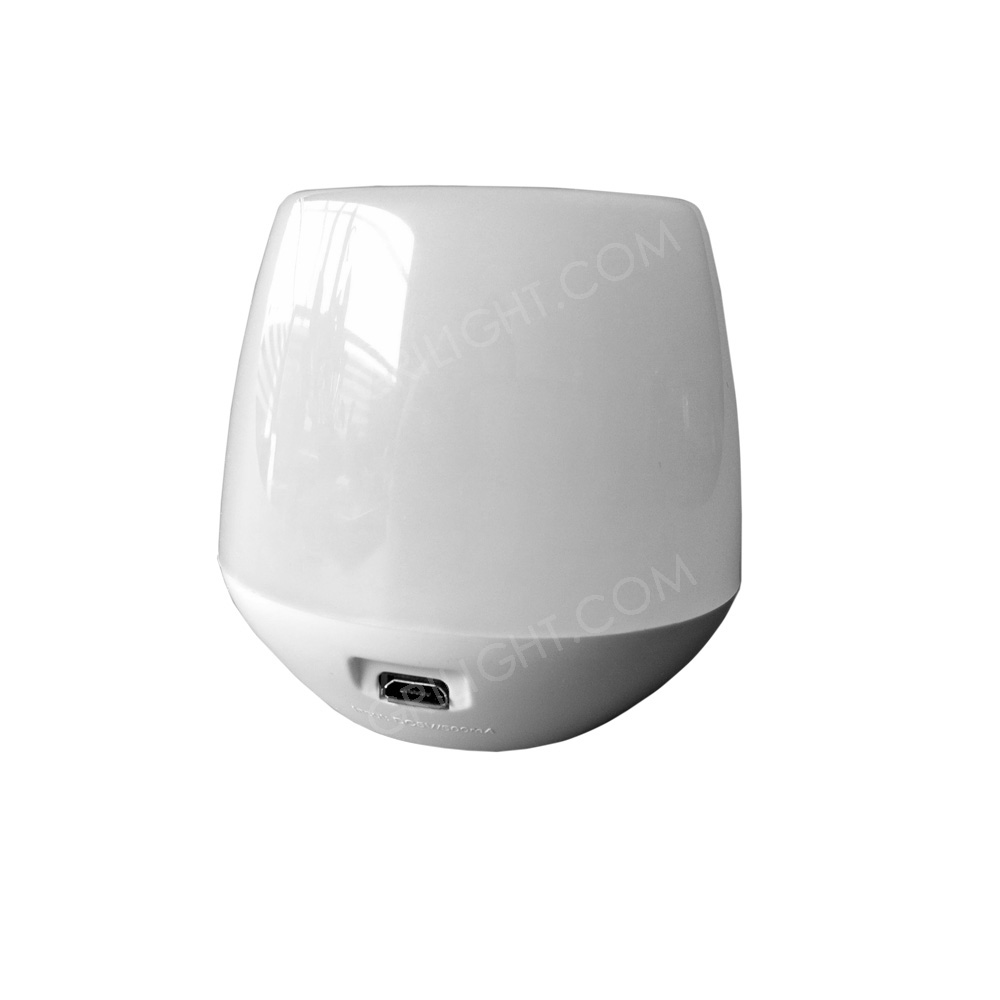

MiLight IBOX1 WIFI Controller/WIFI BOX. Apply to all Mi Light series controllers, it's worked as a center to connect smart phone and controller. Itself comes with RGBW colors to act as a night light
GL-GLAMP603
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 6A×4CH，24A Max |
| Power | 288W(12V),576W(24V) |
| Zones | NA |
| Size | L119xW47xH23mm |
| Working Temperature | -20-60℃ |
| Download |
|

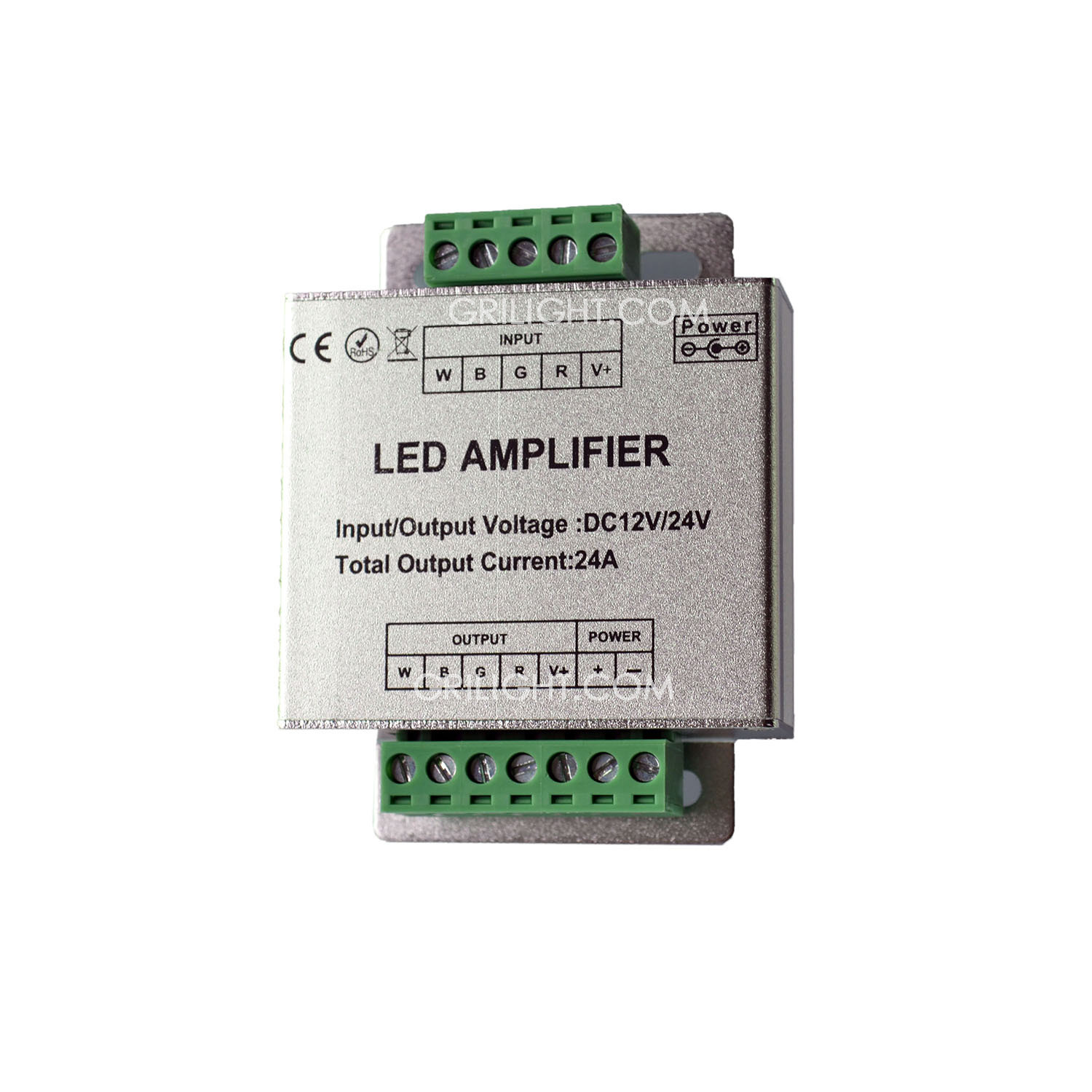

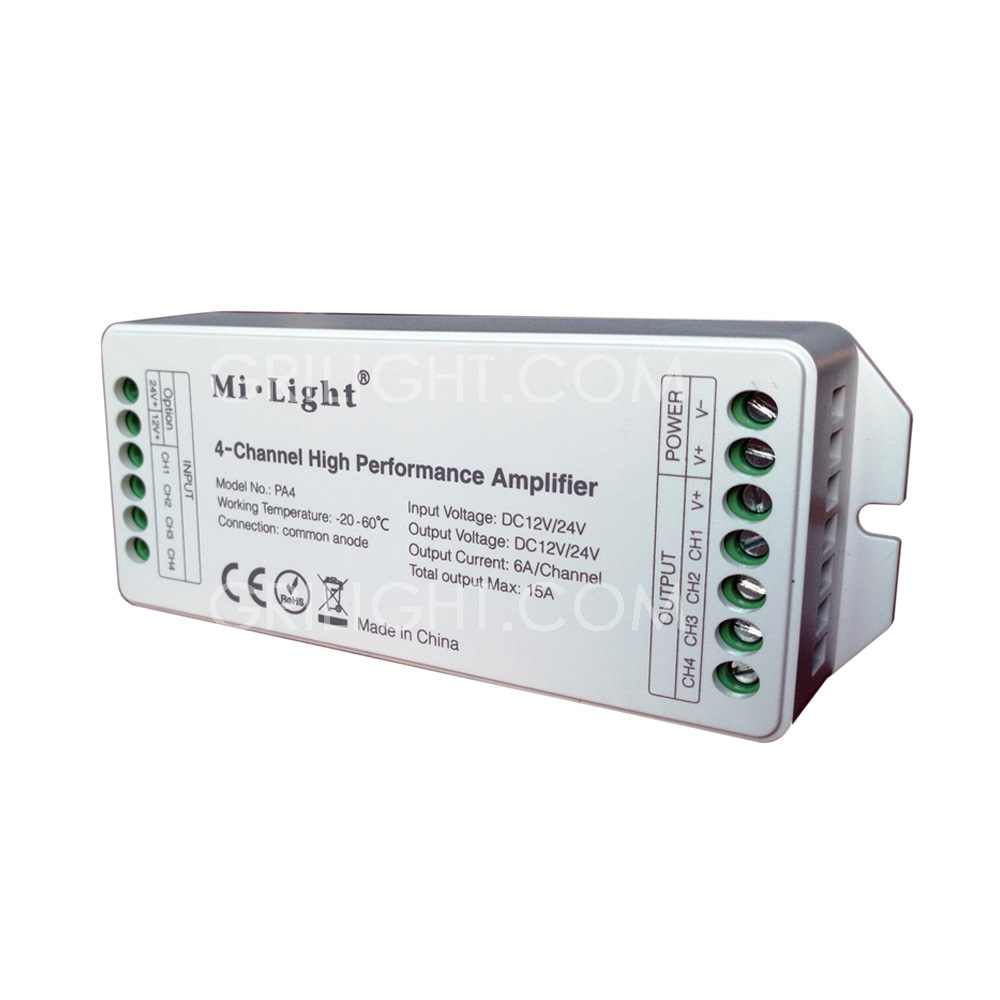

MiLight PA4 RGBW Amplifier. It's the Amplifier of the RGBW conttroller
GL-GLRGBCT701
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 6A×5CH，10A Max |
| Power | 120W(12V),240W(24V) |
| Zones | NA |
| Size | L85xW45xH22mm |
| Working Temperature | -20-60℃ |
| Download |
|

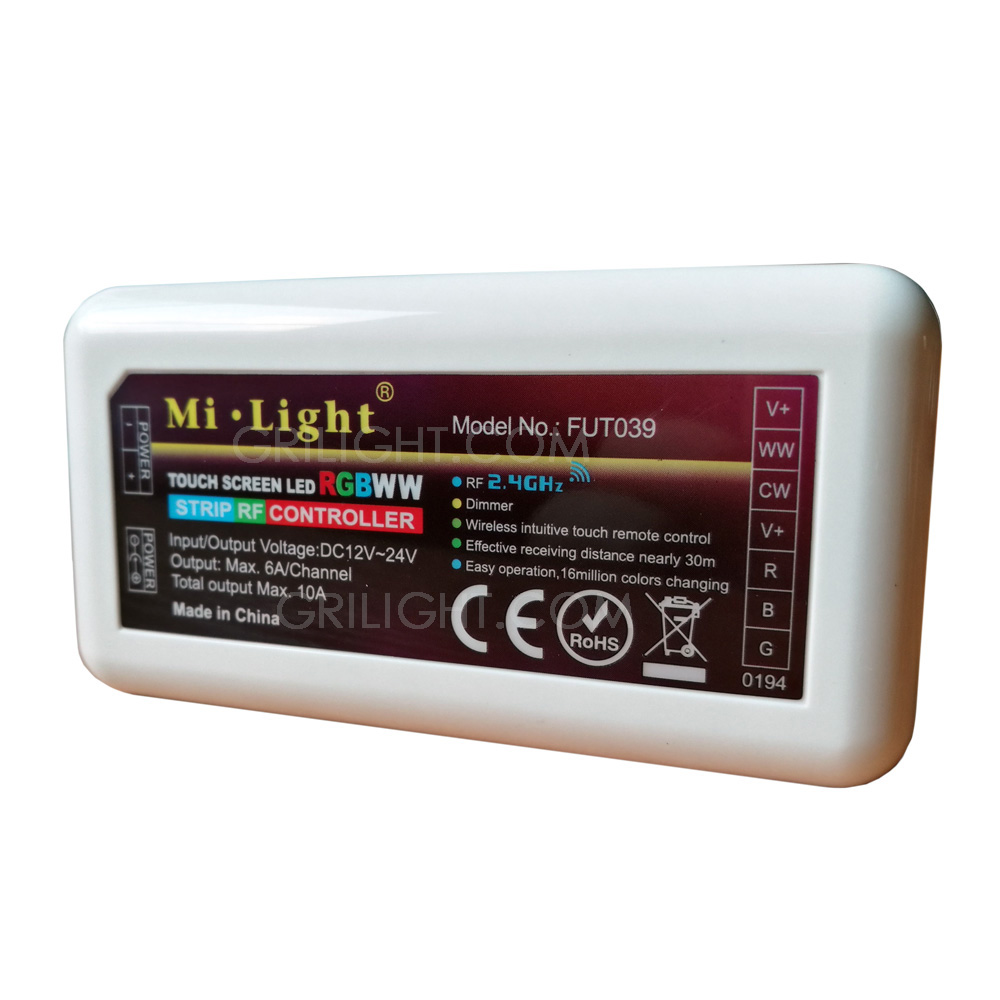

MiLight RGB+CT LED Controller. This RGB+CT LED Controller can work with Ibox1&Ibox2 WIFI controller to be controlled by APP. And it also can work with remote GL-GLRGBCT702 Remote
GL-GLRGBCT702
| Input Voltage | 3.0V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 Zones |
| Size | L138xW56xH20mm |
| Working Temperature | -20-60℃ |
| Download |
|
MiLight RGB+CT Remote. This 4-ZONES RF wireless RGB+CT remote can work with GL-GLRGBCT701 controller
GL-GLBTRGBCT901
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 6A×5CH，10A Max |
| Power | 120W(12V),240W(24V) |
| Zones | NA |
| Size | L85xW45xH22mm |
| Working Temperature | -20-60℃ |
| Download |
|

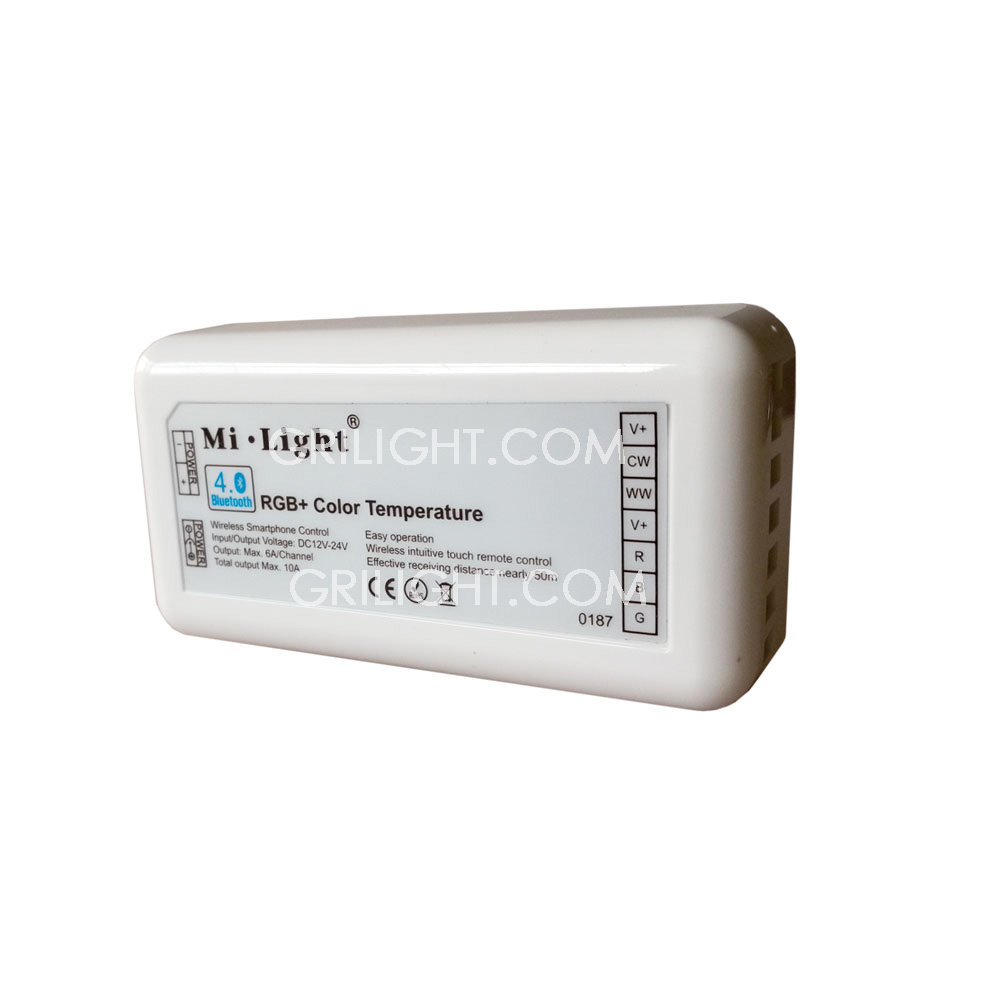

MiLight Bluetooth RGB+CT LED Controller. Can controlled directly by APP via bluetooth, Color can changed based on music,can set ON/OFF on time
GL-GLDIM101
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 6A×1CH，6A Max |
| Power | 72W(12V),144W(24V) |
| Zones | NA |
| Size | L85xW45xH22mm |
| Working Temperature | -20-60℃ |
| Download |
|

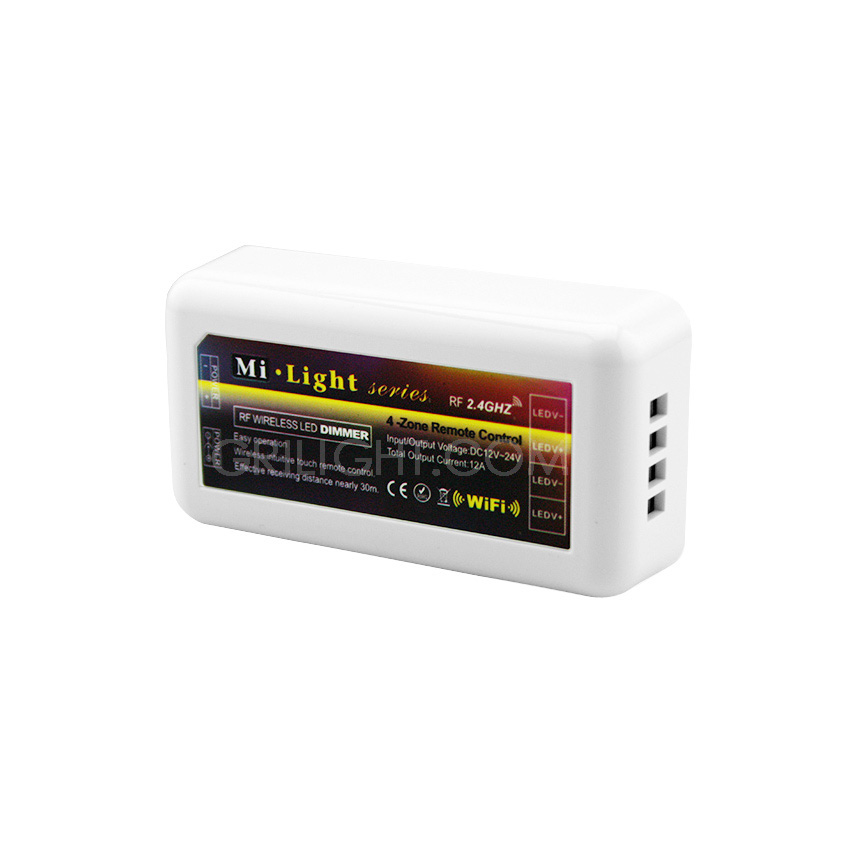

MiLight LED Dimmer. This Dimmer can work with Ibox1&Ibox2 WIFI controller to be controlled by APP. And it also can work with remote GL-GLDIM102/GL-GLDIM103
GL-GLDIM102
| Input Voltage | 3.0V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 Zones |
| Size | L110xW52xH20mm |
| Working Temperature | -20-60℃ |
| Download |
|
MiLight Dimming Remote. This 4-ZONES RF wireless dimming remote can work with GL-GLDIM101 LED Dimmer
GL-GLDIM103
| Input Voltage | 3.0V(CR2032 Lithium Battery) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 Zones |
| Size | L110xW50xH10mm |
| Working Temperature | -20-60℃ |
| Download |
|
MiLight Dimming Remote. This 4-ZONES RF wireless dimming remote can work with GL-GLDIM101 LED Dimmer
GL-GLCT201
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 6A×2CH，12A Max |
| Power | 144W(12V),288W(24V) |
| Zones | NA |
| Size | L85xW45xH22mm |
| Working Temperature | -20-60℃ |
| Download |
|

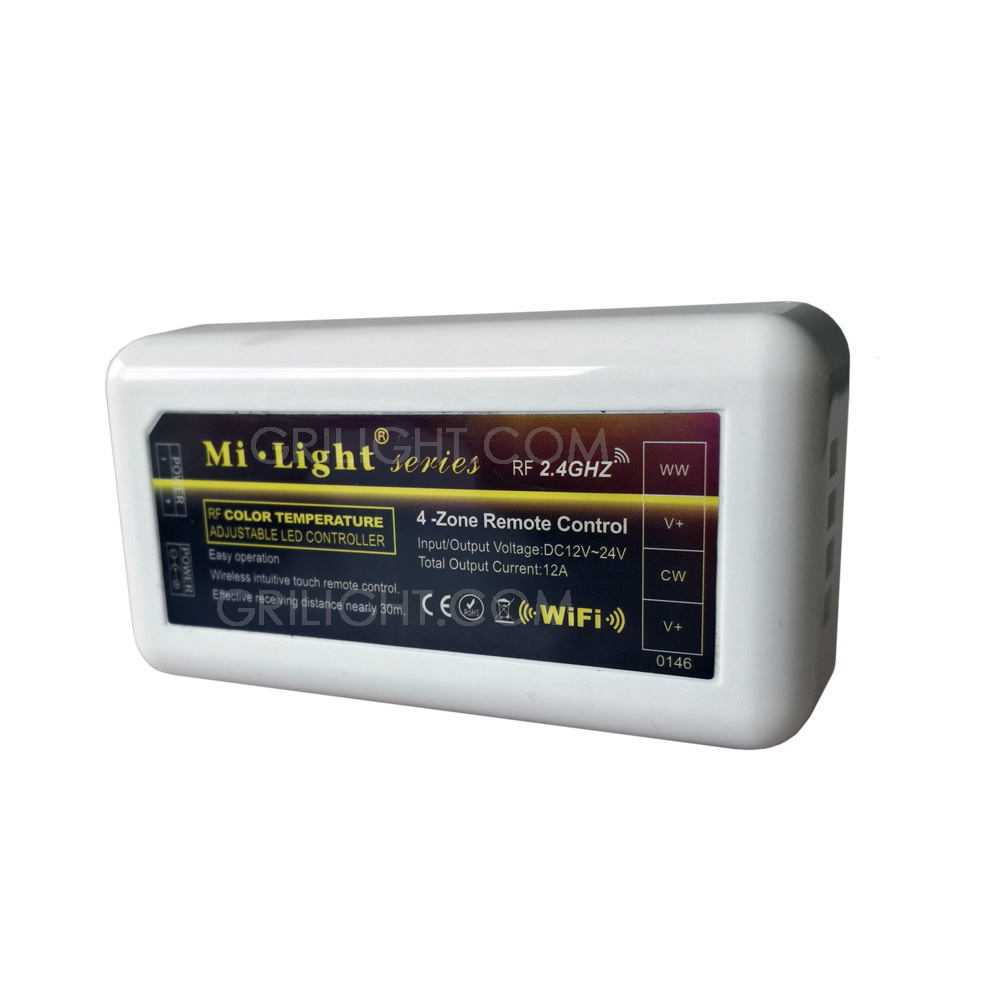

MiLight CT Controller. This 2.4G CT adjustable LED controller can work with Ibox1&Ibox2 WIFI controller to be controlled by APP. And can also work with remote GL-GLCT202/GL-GLCT203
GL-GLCT202
| Input Voltage | 3.0V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 Zones |
| Size | L110xW52xH20mm |
| Working Temperature | -20-60℃ |
| Download |
|

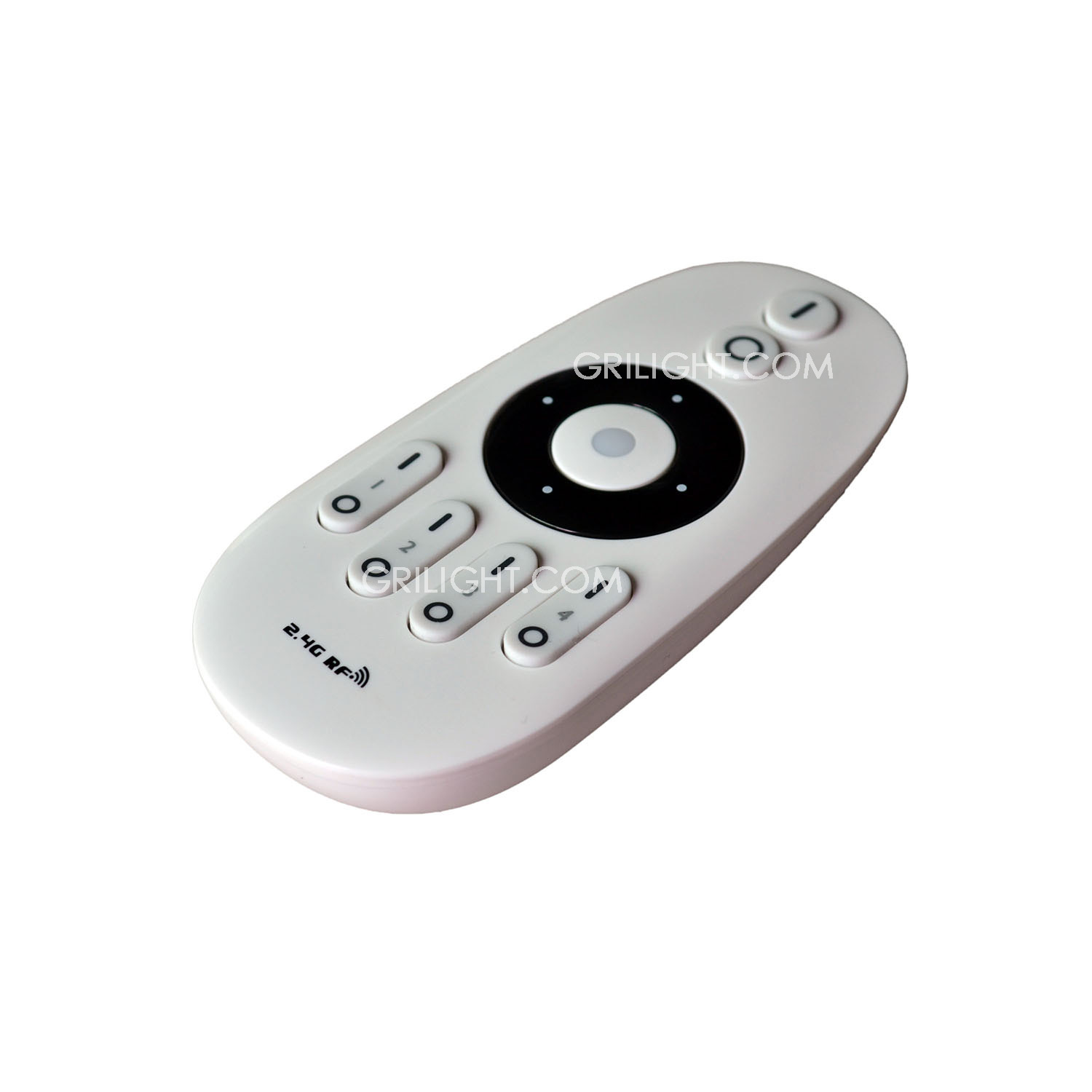

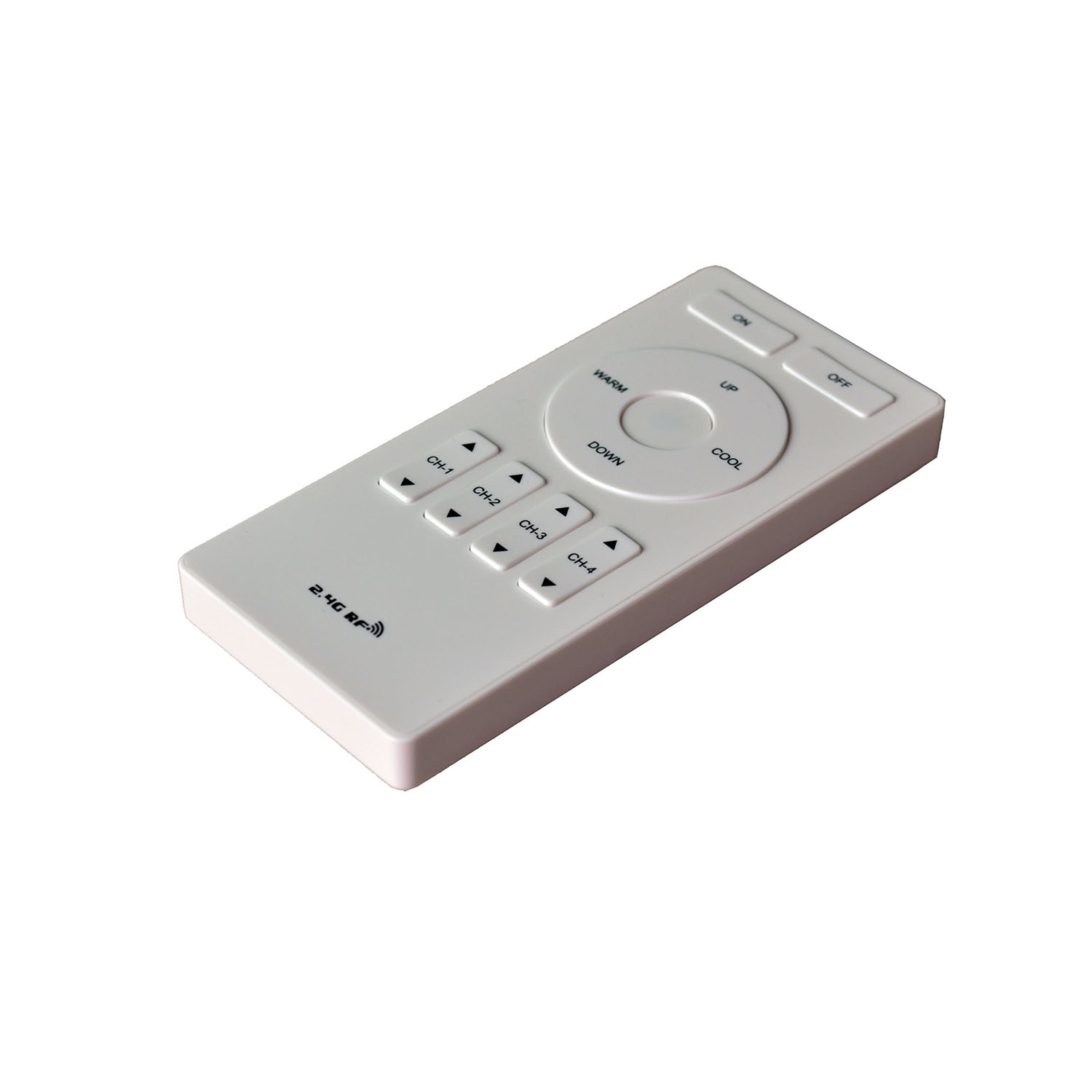

MiLight CT Remote. This 4-ZONES RF wireless CT adjustable LED controller remote can work with GL-GLCT201 CT controller
GL-GLCT203
| Input Voltage | 3.0V(CR2032 Lithium Battery) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 Zones |
| Size | L110xW50xH10mm |
| Working Temperature | -20-60℃ |
| Download |
|
MiLight CT Remote. This 4-ZONES RF wireless CT adjustable LED controller remote. Can work with GL-GLCT201 CT controller
GL-GLRGB301
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 6A×3CH，18A Max |
| Power | 216W(12V),432W(24V) |
| Zones | NA |
| Size | L85xW45xH22mm |
| Working Temperature | -20-60℃ |
| Download |
|

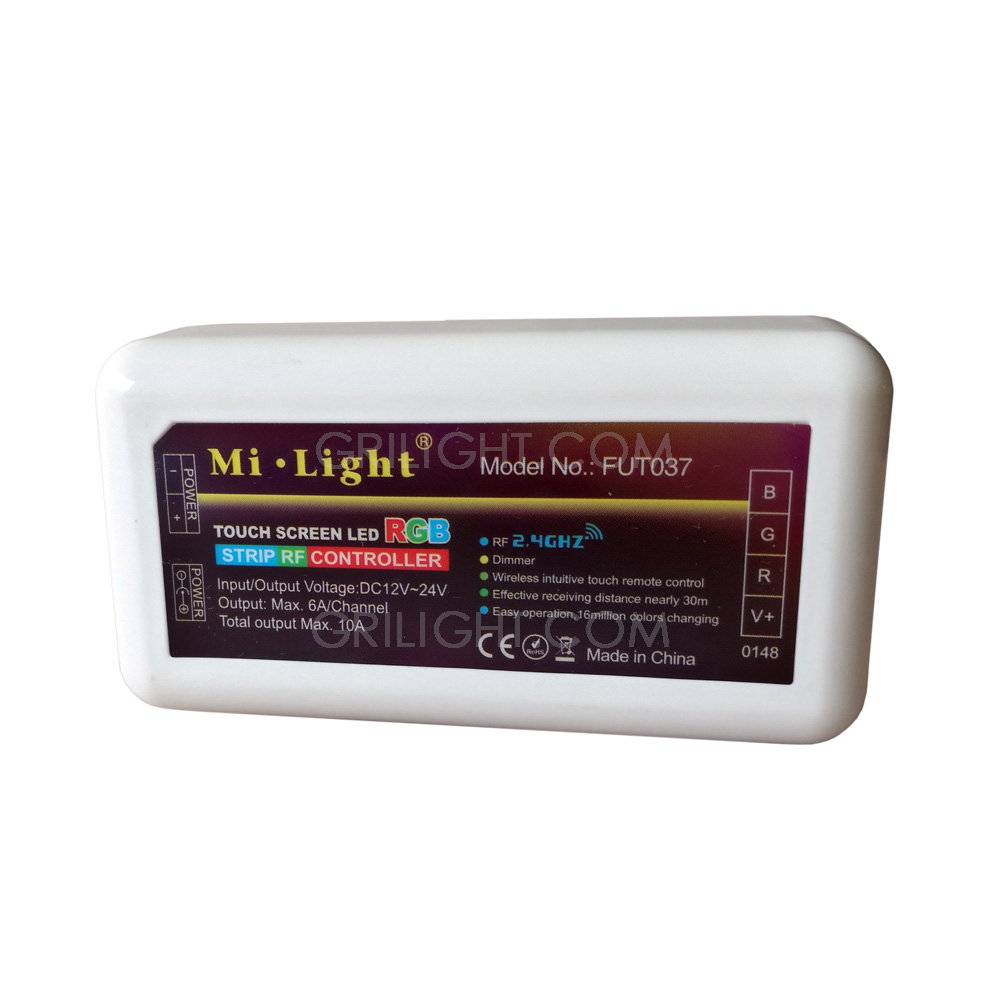

MiLight RGB Controller. This 2.4G RGB LED controller can work with Ibox1&Ibox2 WIFI controller to be controlled by APP. And can also work with remote GL-GLRGB302
GL-GLRGB302
| Input Voltage | 3.0V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 Zones |
| Size | L120xW56xH26mm |
| Working Temperature | -20-60℃ |
| Download |
|
MiLight RGB Remote. This 4-ZONES RF wireless RGB LED controller remote can work with GL-GLRGB301 RGB controller
GL-GLRGBW401
| Input Voltage | 12V/24V DC |
| Output Voltage | 12V/24V DC |
| Output Signal | NA |
| Output Current | 6A×4CH，24A Max |
| Power | 288W(12V),576W(24V) |
| Zones | NA |
| Size | L85xW45xH22mm |
| Working Temperature | -20-60℃ |
| Download |
|

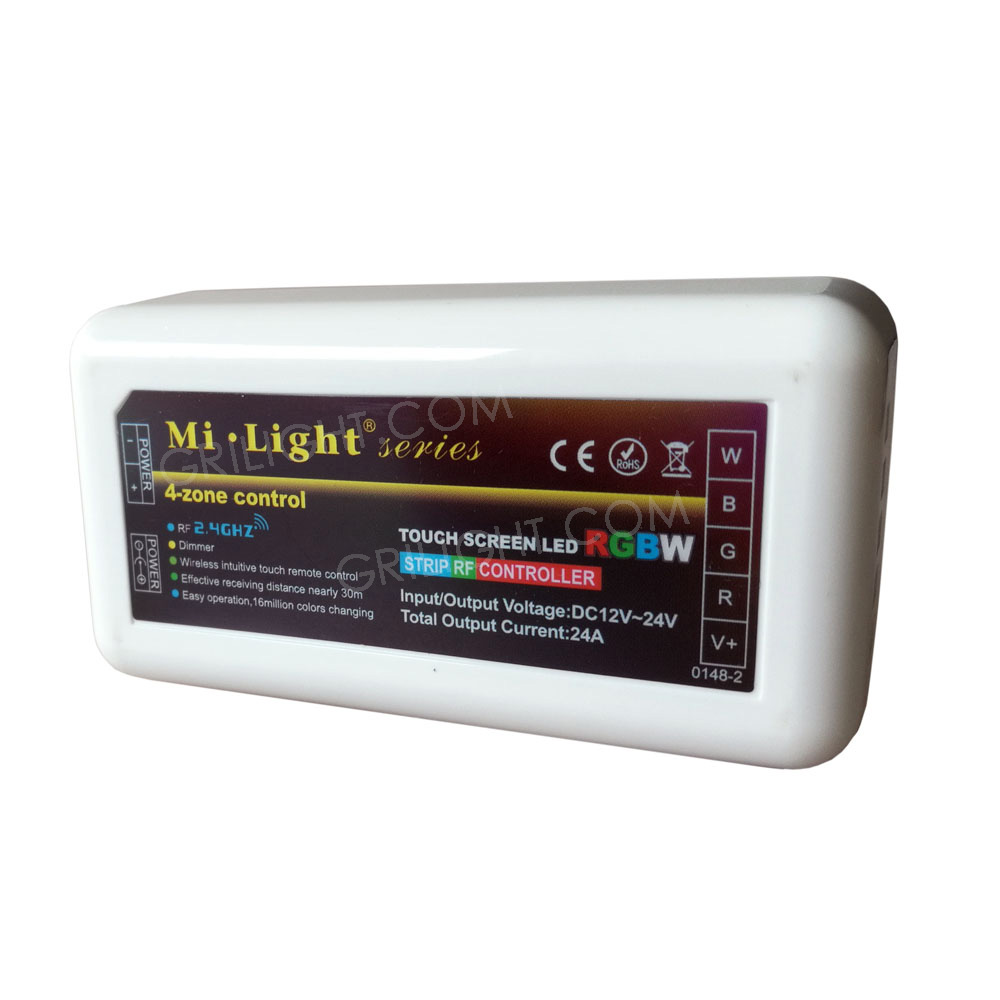

MiLight RGBW Controller. This 2.4G RGBW LED controller can work with Ibox1&Ibox2 WIFI controller to be controlled by APP. And can also work with remote GL-GLRGBW402
GL-GLRGBW402
| Input Voltage | 3.0V(2×AAA Battery) |
| Output Voltage | NA |
| Output Signal | RF 2.4G |
| Output Current | NA |
| Power | NA |
| Zones | 4 Zones |
| Size | L120xW56xH26mm |
| Working Temperature | -20-60℃ |
| Download |
|

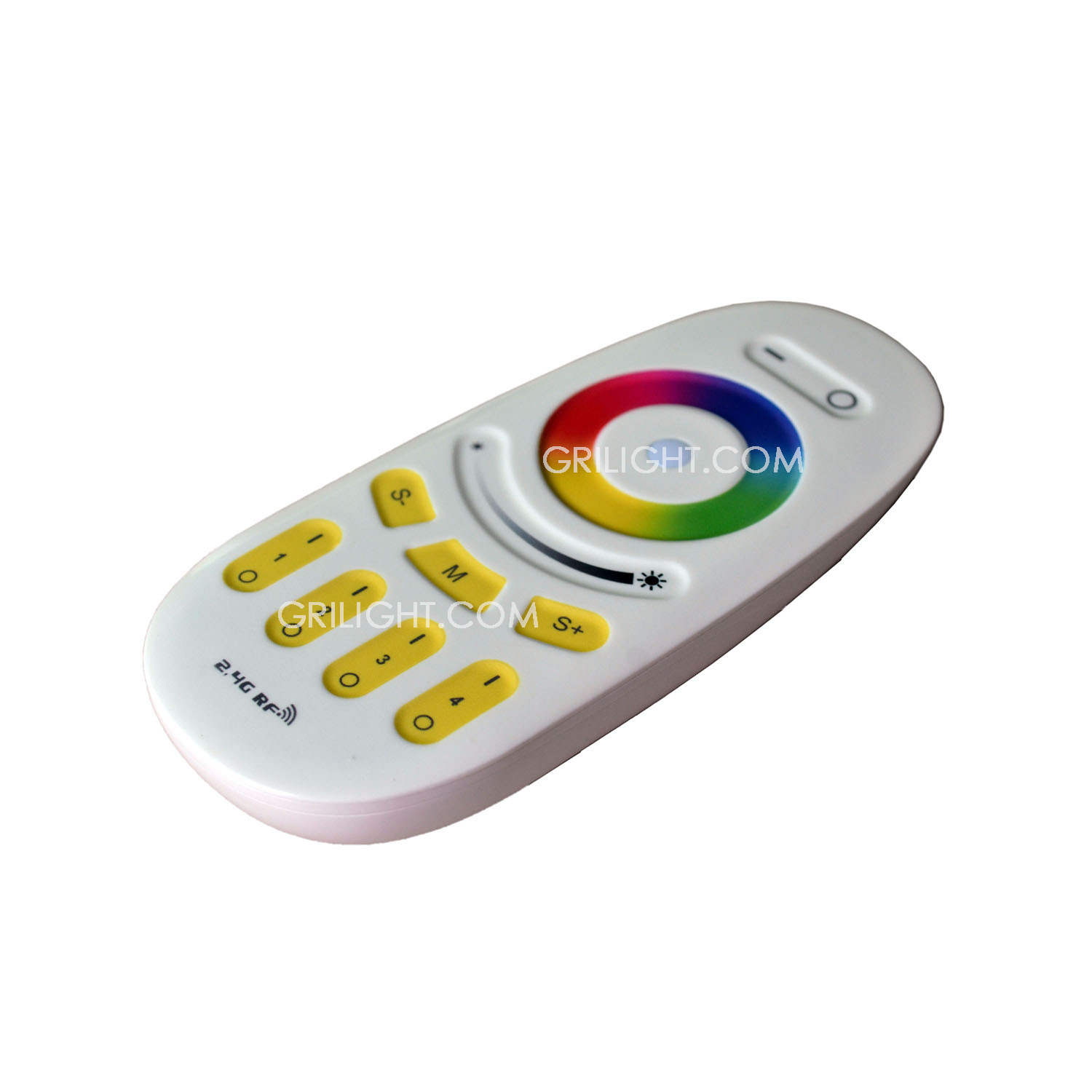

MiLight RGBW Remote. This 4-ZONES RF wireless RGBW LED controller remote can work with GL-GLRGBW401 RGBW Controller
