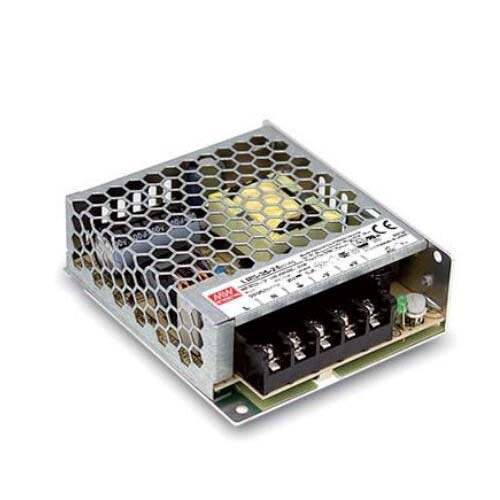

LRS-35
| Input Voltage | 99×82×30mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 7.0A, 12V 3.0A, 24V 1.5A |
| Output Current | 35W |
| Power | NA |
| Zones | 86% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model:LRS-35-5, LRS-35-12, LRS-35-24
Non-PFC, most economical models. Ultra compact and 1U low profile.300VAC input surge. Withstand 5G vibration, 70℃ operation. Short circuit, over loaded, over voltage, over temperature protections

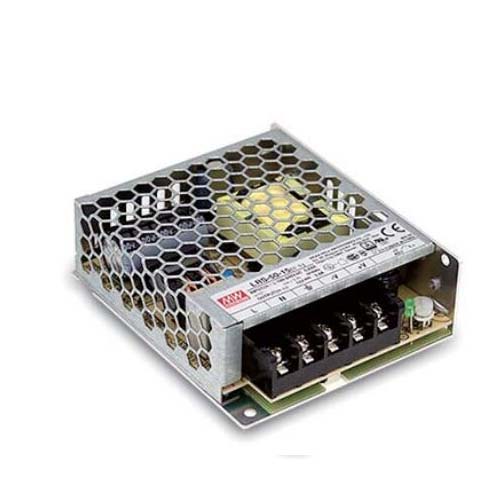

LRS-50
| Input Voltage | 99×82×30mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 10.0A, 12V 4.2A, 24V 2.2A |
| Output Current | 50W |
| Power | NA |
| Zones | 86% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model:LRS-50-5, LRS-50-12, LRS-50-24
Non-PFC, most economical models. Ultra compact and 1U low profile.300VAC input surge. Withstand 5G vibration, 70℃ operation. Short circuit, over loaded, over voltage, over temperature protections

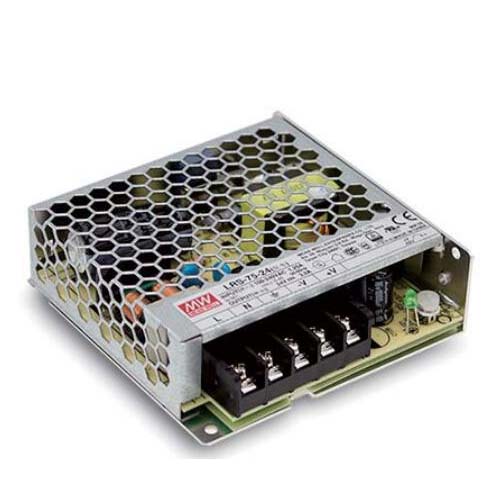

LRS-75
| Input Voltage | 99×97×30mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 14.0A, 12V 6.0A, 24V 3.2A |
| Output Current | 75W |
| Power | NA |
| Zones | 89% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model:LRS-75-5, LRS-75-12, LRS-75-24
Non-PFC, most economical models. Ultra compact and 1U low profile.300VAC input surge. Withstand 5G vibration, 70℃ operation. Short circuit, over loaded, over voltage, over temperature protections

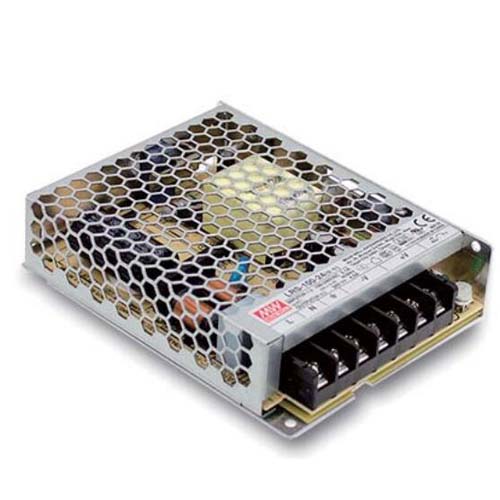

LRS-100
| Input Voltage | 129×97×30mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 18.0A, 12V 8.5A, 24V 4.5A |
| Output Current | 100W |
| Power | NA |
| Zones | 88% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model:LRS-100-5, LRS-100-12, LRS-100-24
Non-PFC, most economical models. Ultra compact and 1U low profile.300VAC input surge. Withstand 5G vibration, 70℃ operation. Short circuit, over loaded, over voltage, over temperature protections
LRS-150F
| Input Voltage | 159×97×30mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 22.0A, 12V 12.5A, 24V 6.5A |
| Output Current | 150W |
| Power | NA |
| Zones | 87.5% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model:LRS-150F-5, LRS-150F-12, LRS-150F-24
Non-PFC, most economical models. Ultra compact and 1U low profile.300VAC input surge. Withstand 5G vibration, 70℃ operation. Short circuit, over loaded, over voltage, over temperature protections

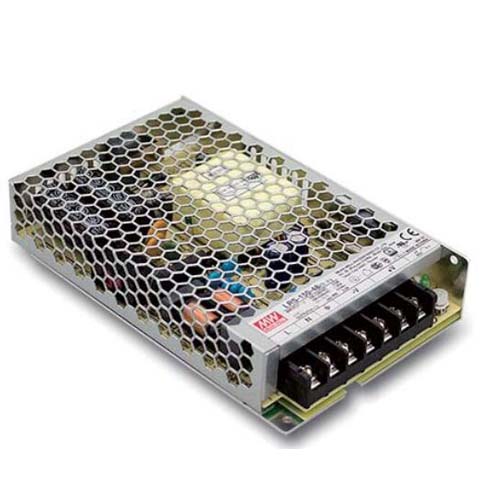

LRS-150
| Input Voltage | 159×97×30mm(L×W×H) |
| Output Voltage | 85-132VAC/170-264VAC by switch 47-63Hz |
| Output Signal | 12V 12.5A, 24V 6.5A |
| Output Current | 150W |
| Power | NA |
| Zones | 87.5% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: LRS-150-12, LRS-150-24
Non-PFC, most economical models. Ultra compact and 1U low profile.300VAC input surge. Withstand 5G vibration, 70℃ operation. Short circuit, over loaded, over voltage, over temperature protections

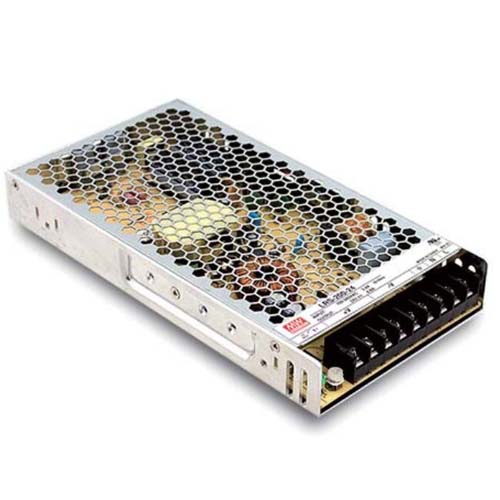

LRS-200
| Input Voltage | 215×115×30mm(L×W×H) |
| Output Voltage | 85-132VAC/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 40.0A, 12V 17.0A, 24V 8.8A |
| Output Current | 200W |
| Power | NA |
| Zones | 87.5% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model:LRS-200-5, LRS-200-12, LRS-200-24
Non-PFC, most economical models. Ultra compact and 1U low profile.300VAC input surge. Withstand 5G vibration, 70℃ operation. Short circuit, over loaded, over voltage, over temperature protections

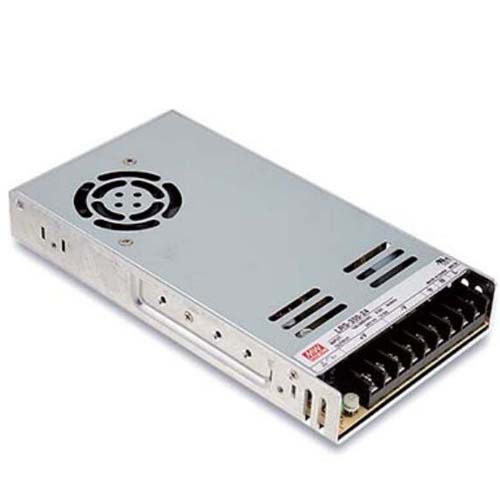

LRS-350
| Input Voltage | 215×115×30mm(L×W×H) |
| Output Voltage | 85-132VAC/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 60.0A, 12V 29.0A, 24V 14.6A |
| Output Current | 350W |
| Power | NA |
| Zones | 85.0% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model:LRS-350-5, LRS-350-12, LRS-350-24
Non-PFC, most economical models. Ultra compact and 1U low profile.300VAC input surge. Withstand 5G vibration, 70℃ operation. Short circuit, over loaded, over voltage, over temperature protections

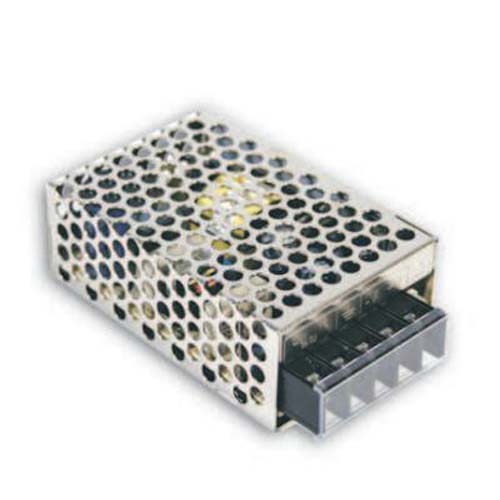

NES-15
| Input Voltage | 78×51×28mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 3.0A, 12V 1.3A, 24V 0.7A |
| Output Current | 15W |
| Power | NA |
| Zones | 81% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-15-5, NES-15-12, NES-15-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections

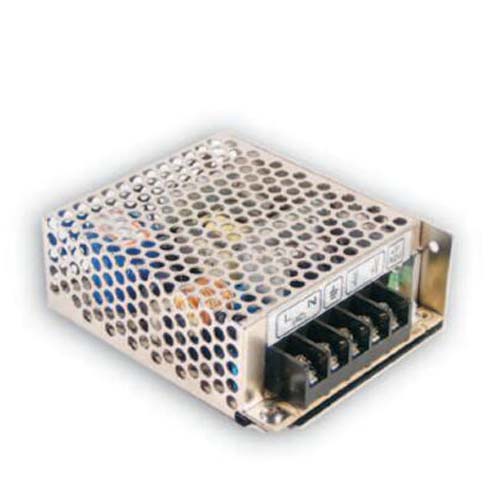

NES-25
| Input Voltage | 99×82×35mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 5.0A, 12V 2.1A, 24V 1.1A |
| Output Current | 25W |
| Power | NA |
| Zones | 83% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-25-5, NES-25-12, NES-25-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections

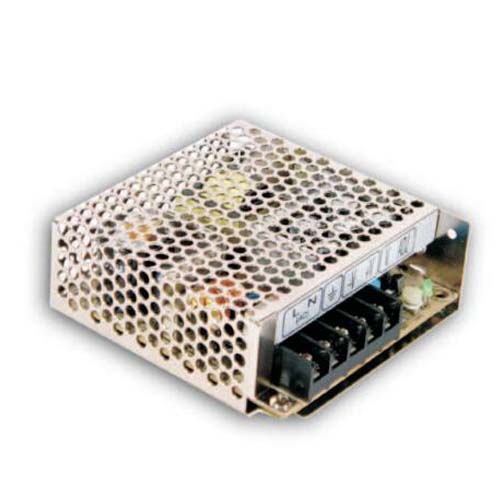

NES-35
| Input Voltage | 99×97×36mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 7.0A, 12V 3.0A, 24V 1.5A |
| Output Current | 35W |
| Power | NA |
| Zones | 81% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-35-5, NES-35-12, NES-35-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections

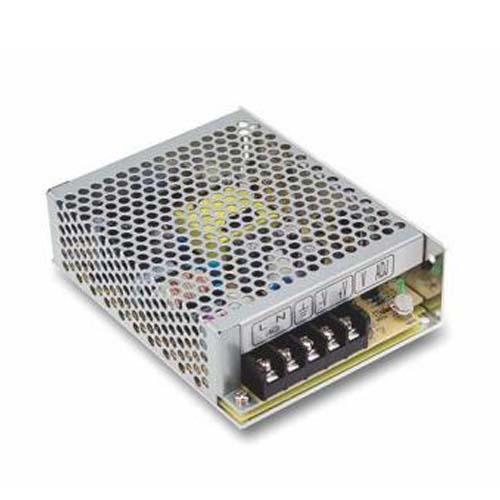

NES-50
| Input Voltage | 129×98×38mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 10.0A, 12V 4.2A, 24V 2.2A |
| Output Current | 50W |
| Power | NA |
| Zones | 82% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-50-5, NES-50-12, NES-50-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections

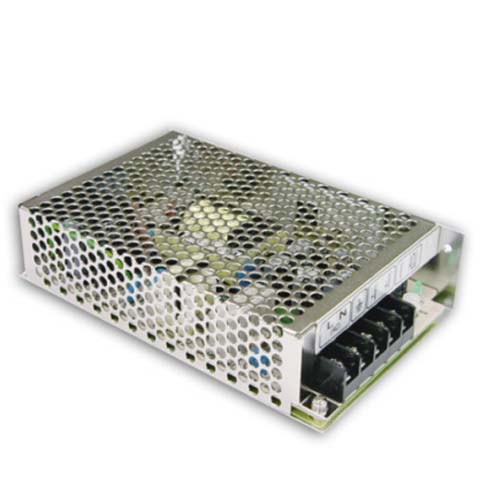

NES-75
| Input Voltage | 159×97×38mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 14.0A, 12V 6.2A, 24V 3.2A |
| Output Current | 75W |
| Power | NA |
| Zones | 82% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-75-5, NES-75-12, NES-75-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections

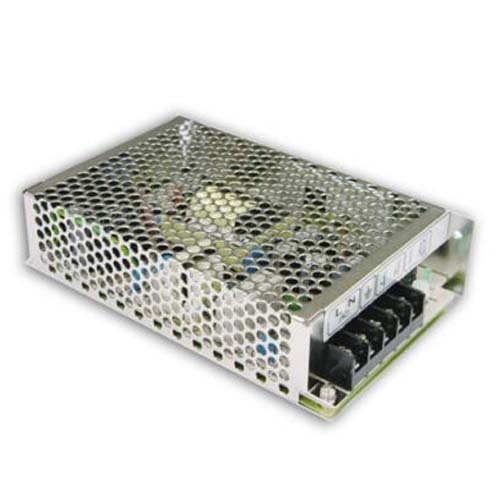

NES-100
| Input Voltage | 159×97×38mm(L×W×H) |
| Output Voltage | 85-132V/176-264VAC by switch 47-63Hz |
| Output Signal | 5V 20.0A, 12V 8.5A, 24V 4.5A |
| Output Current | 100W |
| Power | NA |
| Zones | 83% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-100-5, NES-100-12, NES-100-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections

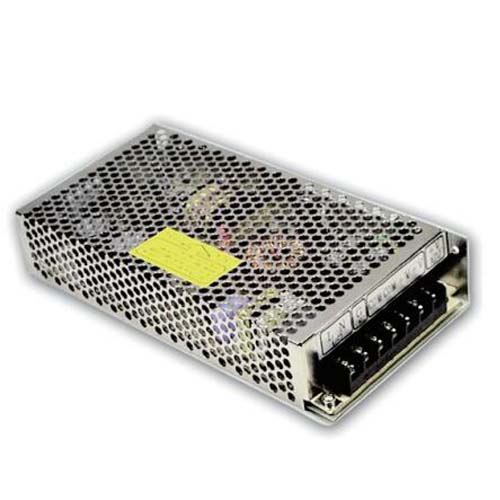

NES-150
| Input Voltage | 215×115×50mm(L×W×H) |
| Output Voltage | 90-132V/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 40.0A, 12V 17.0A, 24V 8.8A |
| Output Current | 200W |
| Power | NA |
| Zones | 85% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-200-5, NES-200-12, NES-200-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections

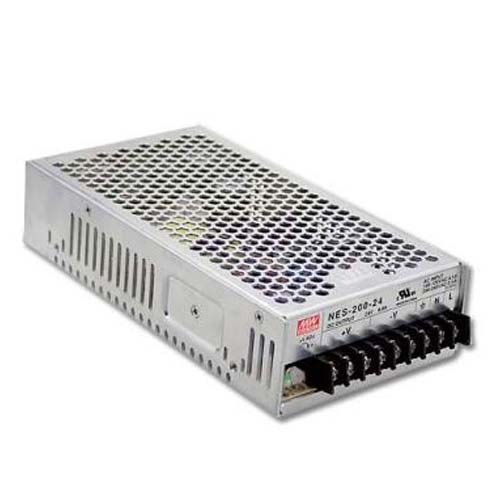

NES-200
| Input Voltage | 215×115×50mm(L×W×H) |
| Output Voltage | 90-132V/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 40.0A, 12V 17.0A, 24V 8.8A |
| Output Current | 200W |
| Power | NA |
| Zones | 85% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-200-5, NES-200-12, NES-200-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections
NES-350
| Input Voltage | 215×115×50mm(L×W×H) |
| Output Voltage | 90-132V/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 60.0A, 12V 29.0A, 24V 14.6A |
| Output Current | 350W |
| Power | NA |
| Zones | 83% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: NES-350-5, NES-350-12, NES-350-24
Economical non-PFC models. Complete protections. Complete safety certificates.Short circuit, over loaded, over voltage, over temperature protections

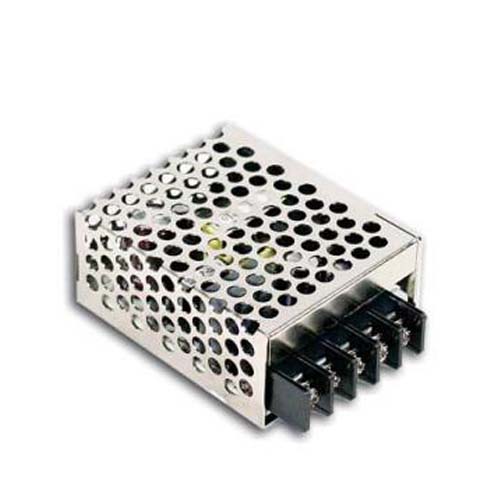

RS-15
| Input Voltage | 62.5×51×28mm(L×W×H) |
| Output Voltage | 85-264VAC 47-63Hz |
| Output Signal | 5V 3.0A, 12V 1.3A, 24V 0.625A |
| Output Current | 15W |
| Power | NA |
| Zones | 81% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: RS-15-5, RS-15-12, RS-15-24
Miniature size, non-PFC.300VAC input surge. Suitable for critical applications. Short circuit, over loaded, over voltage, over temperature protections

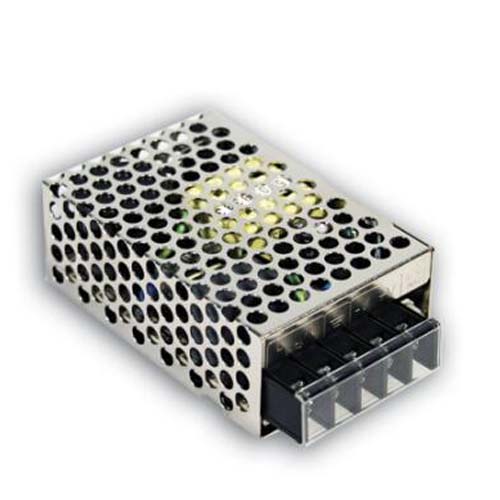

RS-25
| Input Voltage | 78×51×28mm(L×W×H) |
| Output Voltage | 88-264VAC 47-63Hz |
| Output Signal | 5V 5.0A, 12V 2.1A, 24V 1.1A |
| Output Current | 25W |
| Power | NA |
| Zones | 81.5% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: RS-25-5, RS-25-12, RS-25-24
Miniature size, non-PFC.300VAC input surge. Suitable for critical applications. Short circuit, over loaded, over voltage, over temperature protections

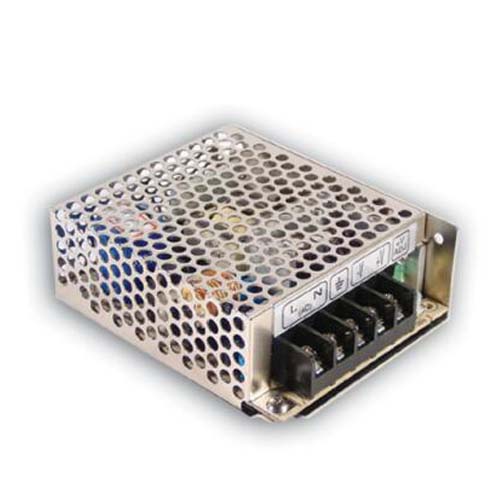

RS-35
| Input Voltage | 99×82×36mm(L×W×H) |
| Output Voltage | 88-264VAC 47-63Hz |
| Output Signal | 5V 7.0A, 12V 3.0A, 24V 1.5A |
| Output Current | 35W |
| Power | NA |
| Zones | 84.5% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: RS-35-5, RS-35-12, RS-35-24
Miniature size, non-PFC.300VAC input surge. Suitable for critical applications. Short circuit, over loaded, over voltage, over temperature protections

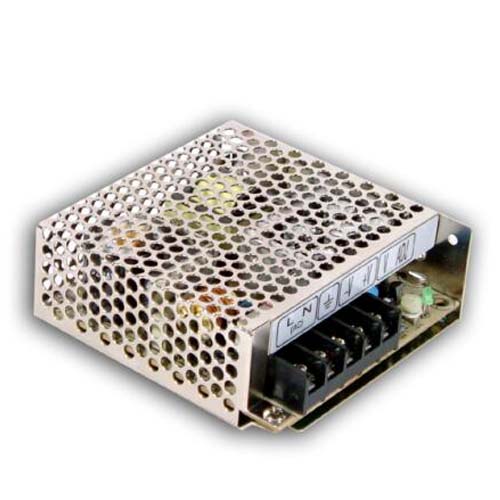

RS-50
| Input Voltage | 99×97×36mm(L×W×H) |
| Output Voltage | 88-264VAC 47-63Hz |
| Output Signal | 5V 10.0A, 12V 4.2A, 24V 2.2A |
| Output Current | 50W |
| Power | NA |
| Zones | 84.5% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: RS-50-5, RS-50-12, RS-50-24
Miniature size, non-PFC.300VAC input surge. Suitable for critical applications. Short circuit, over loaded, over voltage, over temperature protections

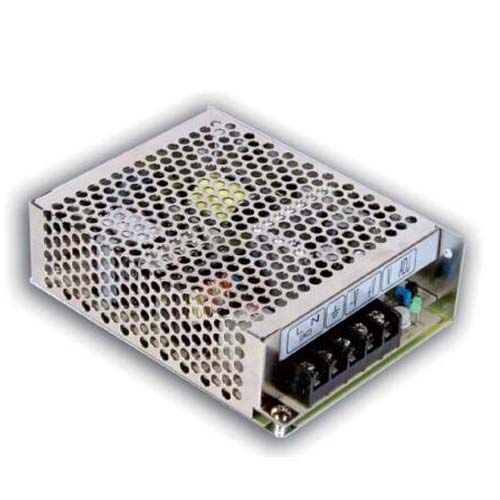

RS-75
| Input Voltage | 129×97×38mm(L×W×H) |
| Output Voltage | 88-264VAC 47-63Hz |
| Output Signal | 5V 12.0A, 12V 6.0A, 24V 3.2A |
| Output Current | 75W |
| Power | NA |
| Zones | 84.5% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: RS-75-5, RS-75-12, RS-75-24
Miniature size, non-PFC.300VAC input surge. Suitable for critical applications. Short circuit, over loaded, over voltage, over temperature protections

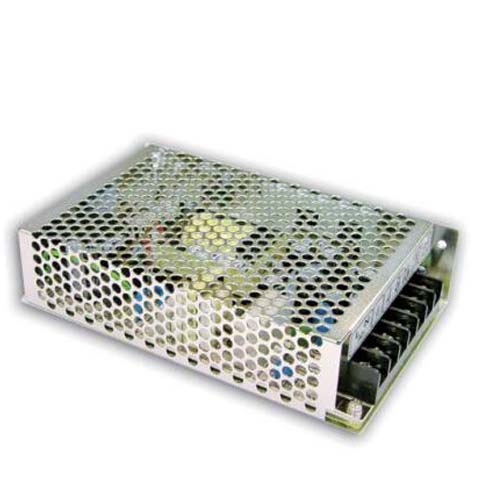

RS-100
| Input Voltage | 159×97×38mm(L×W×H) |
| Output Voltage | 88-264VAC 47-63Hz |
| Output Signal | 5V 16.0A, 12V 8.5A, 24V 4.5A |
| Output Current | 100W |
| Power | NA |
| Zones | 81.0% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: RS-100-5, RS-100-12, RS-100-24
Miniature size, non-PFC.300VAC input surge. Suitable for critical applications. Short circuit, over loaded, over voltage, over temperature protections

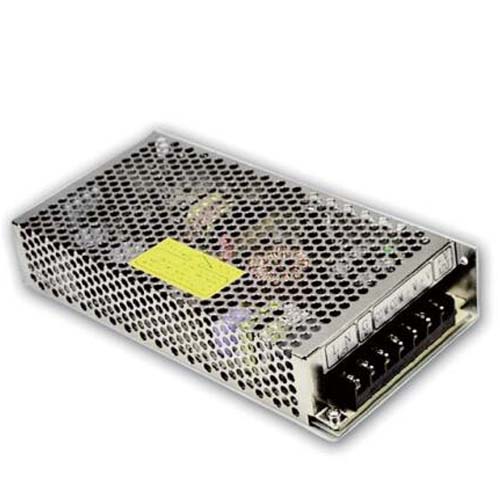

RS-150
| Input Voltage | 199×98×38mm(L×W×H) |
| Output Voltage | 88-132/176-264VAC by switch 47-63Hz |
| Output Signal | 5V 26.0A, 12V 12.5A, 24V 6.5A |
| Output Current | 150W |
| Power | NA |
| Zones | 83.0% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: RS-150-5, RS-150-12, RS-150-24
Miniature size, non-PFC.300VAC input surge. Suitable for critical applications. Short circuit, over loaded, over voltage, over temperature protections

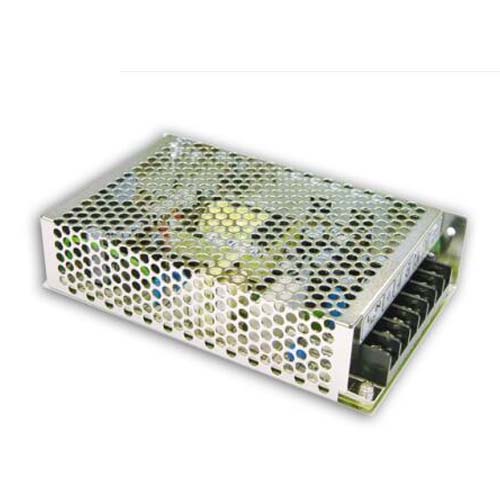

SE-100
| Input Voltage | 159×97×38mm(L×W×H) |
| Output Voltage | 85-132/176-264VAC by switch 47-63Hz |
| Output Signal | 5V 20.0A, 12V 8.5A, 24V 4.5A |
| Output Current | 100W |
| Power | NA |
| Zones | 83% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: SE-100-5, SE-100-12, SE-100-24
Non-PFC. Economical medium to high power models. Short circuit, over loaded, over voltage, over temperature protections

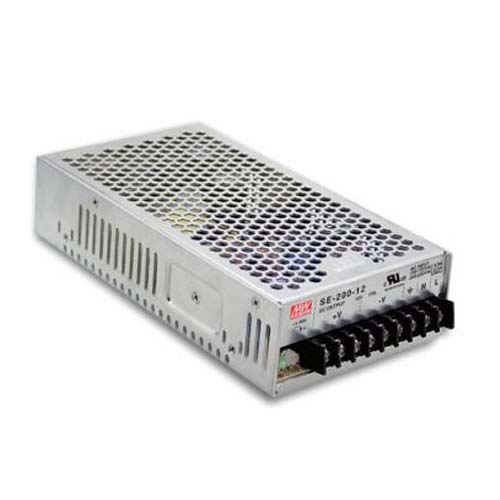

SE-200
| Input Voltage | 215×115×50mm(L×W×H) |
| Output Voltage | 90-132/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 40.0A, 12V 17.0A, 24V 8.8A |
| Output Current | 200W |
| Power | NA |
| Zones | 85% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: SE-200-5, SE-200-12, SE-200-24
Non-PFC. Economical medium to high power models. Short circuit, over loaded, over voltage, over temperature protections

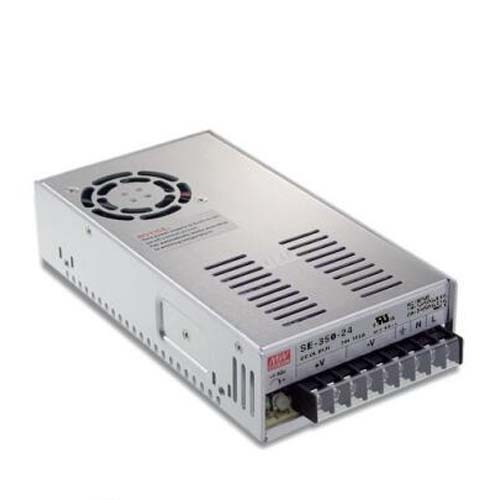

SE-350
| Input Voltage | 215×115×50mm(L×W×H) |
| Output Voltage | 90-132/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 60.0A, 12V 29.0A, 24V 14.6A |
| Output Current | 350W |
| Power | NA |
| Zones | 83% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: SE-350-5, SE-350-12, SE-350-24
Non-PFC. Economical medium to high power models. Short circuit, over loaded, over voltage, over temperature protections

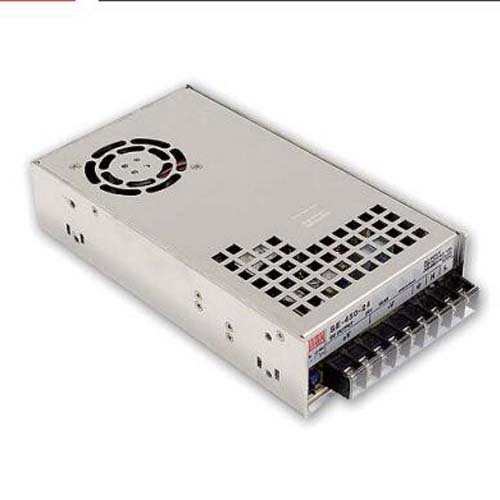

SE-450
| Input Voltage | 225×124×50mm(L×W×H) |
| Output Voltage | 90-132/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 75.0A, 12V 37.5A, 24V 18.8A |
| Output Current | 450W |
| Power | NA |
| Zones | 83% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: SE-450-5, SE-450-12, SE-450-24
Non-PFC. Economical medium to high power models. Short circuit, over loaded, over voltage, over temperature protections

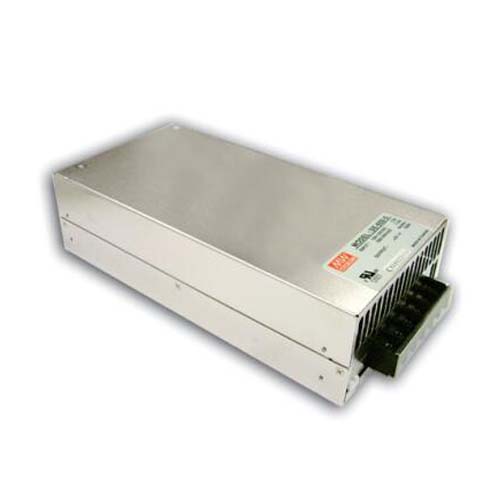

SE-600
| Input Voltage | 247×127×63.5mm(L×W×H) |
| Output Voltage | 90-132/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 100.0A, 12V 50.0A, 24V 25.0A |
| Output Current | 600W |
| Power | NA |
| Zones | 83% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: SE-600-5, SE-600-12, SE-600-24
Non-PFC. Economical medium to high power models. Short circuit, over loaded, over voltage, over temperature protections

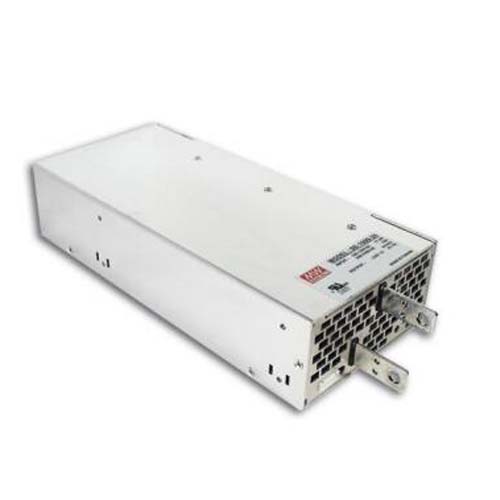

SE-1000
| Input Voltage | 278×127×63.5mm(L×W×H) |
| Output Voltage | 90-132/180-264VAC by switch 47-63Hz |
| Output Signal | 5V 150.0A, 12V 83.3A, 24V 41.7A |
| Output Current | 1000W |
| Power | NA |
| Zones | 85% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: SE-1000-5, SE-1000-12, SE-1000-24
Non-PFC. Economical medium to high power models. Short circuit, over loaded, over voltage, over temperature protections
SE-1500
| Input Voltage | 278×177.8×63.5mm(L×W×H) |
| Output Voltage | 180-264VAC 47-63Hz |
| Output Signal | 5V 300.0A, 12V 125.0A, 24V 62.5A |
| Output Current | 1500W |
| Power | NA |
| Zones | 85% |
| Size | IP20 |
| Working Temperature | |
| Download |
|
Model: SE-1500-5, SE-1500-12, SE-1500-24
Non-PFC. Economical medium to high power models. Short circuit, over loaded, over voltage, over temperature protections
