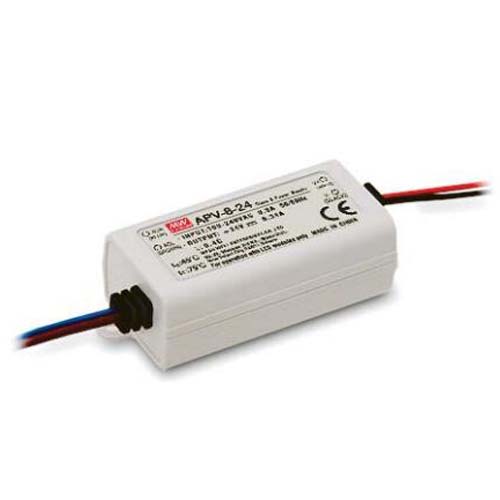

APV-8
| Input Voltage | 60×30×23.5mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 1.4A, 12V 0.67A, 24V 0.34A |
| Output Current | 8W |
| Power | N/A |
| Zones | 80% |
| Size | IP42 |
| Working Temperature | |
| Download |
|
Model: APV-8-5, APV-8-12, AVP-8-24
Fully isolated plastic case.Class II design, without FG.Low cost, small and compact size.
Short circuit, over loaded, over voltage protections

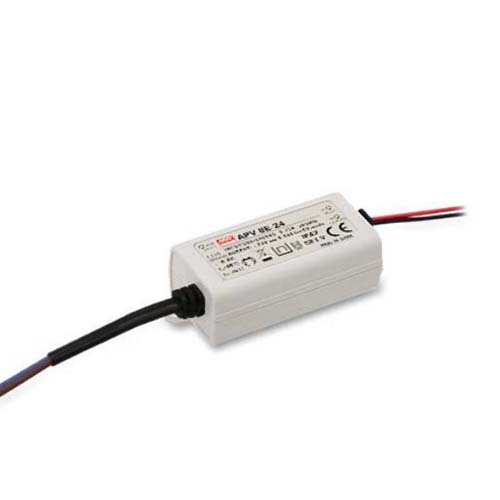

APV-8E
| Input Voltage | 60×30×23.5mm(L×W×H) |
| Output Voltage | 180-264VAC 47-63Hz |
| Output Signal | 5V 1.4A, 12V 0.67A, 24V 0.34A |
| Output Current | 8W |
| Power | 0.5 |
| Zones | 78% |
| Size | IP42 |
| Working Temperature | |
| Download |
|
Model: APV-8E-5, APV-8E-12, AVP-8E-24
Fully isolated plastic case.Class II design, without FG.Low cost, small and compact size.
Short circuit, over loaded, over voltage protections

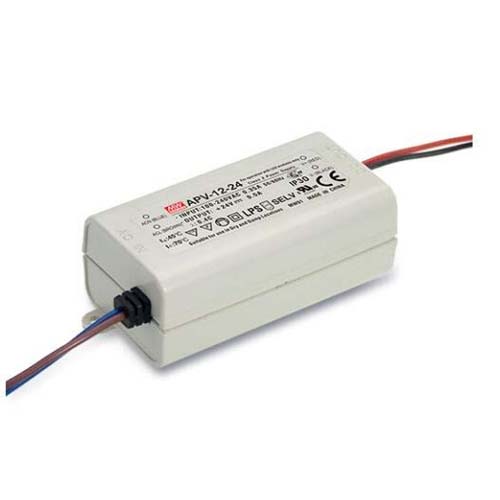

APV-12
| Input Voltage | 77×40×29mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 2.0A, 12V 1.0A, 24V 0.5A |
| Output Current | 12W |
| Power | N/A |
| Zones | 82% |
| Size | IP42 |
| Working Temperature | |
| Download |
|
Model: APV-12-5, APV-12-12, AVP-12-24
Fully isolated plastic case.Class II design, without FG.Low cost, small and compact size.
Short circuit, over loaded, over voltage protections

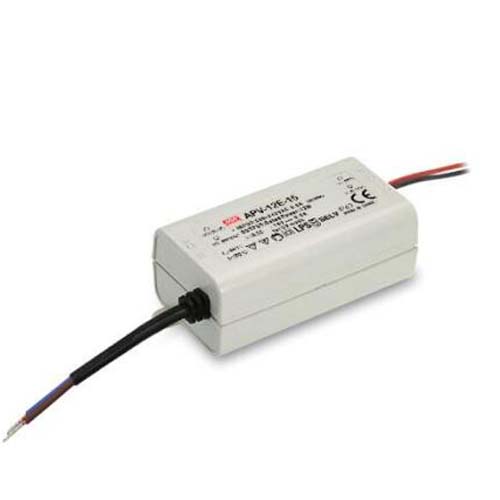

APV-12E
| Input Voltage | 77×40×29mm(L×W×H) |
| Output Voltage | 180-264VAC 47-63Hz |
| Output Signal | 5V 2.0A, 12V 1.0A, 24V 0.5A |
| Output Current | 12W |
| Power | 0.5 |
| Zones | 82% |
| Size | IP42 |
| Working Temperature | |
| Download |
|
Model: APV-12E-5, APV-12E-12, AVP-12E-24
Fully isolated plastic case.Class II design, without FG.Low cost, small and compact size.
Short circuit, over loaded, over voltage protections

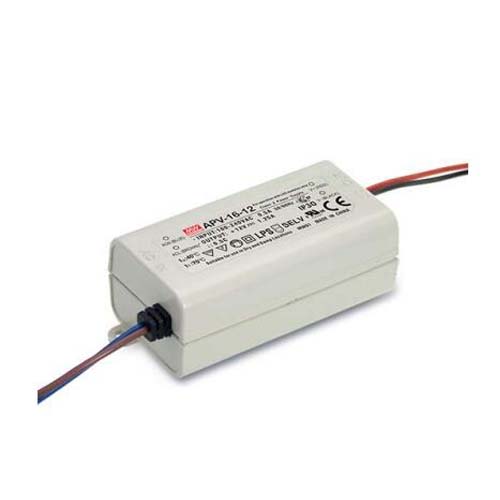

APV-16
| Input Voltage | 77×40×29mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 2.6A, 12V 1.25A, 24V 0.67A |
| Output Current | 16W |
| Power | N/A |
| Zones | 80% |
| Size | IP42 |
| Working Temperature | |
| Download |
|
Model: APV-16-5, APV-16-12, AVP-16-24
Fully isolated plastic case.Class II design, without FG.Low cost, small and compact size.
Short circuit, over loaded, over voltage protections
APV-16E
| Input Voltage | 77×40×29mm(L×W×H) |
| Output Voltage | 180-264VAC 47-63Hz |
| Output Signal | 5V 2.6A, 12V 1.25A, 24V 0.67A |
| Output Current | 16W |
| Power | 0.5 |
| Zones | 79% |
| Size | IP42 |
| Working Temperature | |
| Download |
|
Model: APV-16E-5, APV-16E-12, AVP-16E-24
Fully isolated plastic case.Class II design, without FG.Low cost, small and compact size.
Short circuit, over loaded, over voltage protections

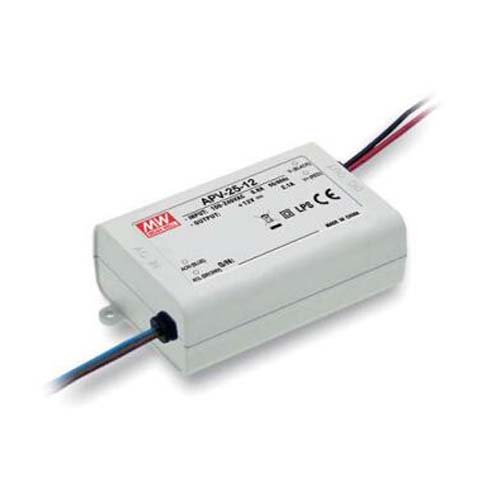

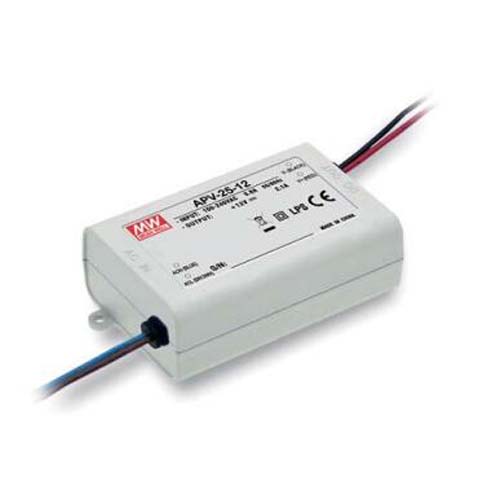

APV-25
| Input Voltage | 84×57×29.5mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 3.5A, 12V 2.1A, 24V 1.05A |
| Output Current | 25W |
| Power | N/A |
| Zones | 82% |
| Size | IP42 |
| Working Temperature | |
| Download |
|
Model: APV-25-5, APV-25-12, AVP-25-24
Fully isolated plastic case.Class II design, without FG.Low cost, small and compact size.
Short circuit, over loaded, over voltage protections
APV-35
| Input Voltage | 84×57×29.5mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 5.0A, 12V 3.0A, 24V 1.5A |
| Output Current | 35W |
| Power | N/A |
| Zones | 83% |
| Size | IP42 |
| Working Temperature | |
| Download |
|
Model: APV-35-5, APV-35-12, AVP-35-24
Fully isolated plastic case.Class II design, without FG.Low cost, small and compact size.
Short circuit, over loaded, over voltage protections

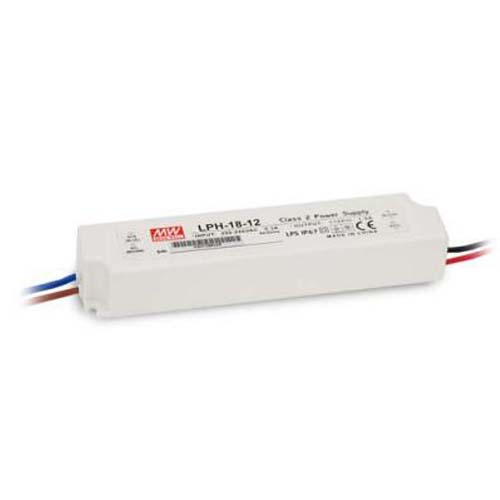

LPH-18
| Input Voltage | 140×30×22mm(L×W×H) |
| Output Voltage | 180-264VAC 47-63Hz |
| Output Signal | 12V 1.5A, 24V 0.75A |
| Output Current | 18W |
| Power | NA |
| Zones | 80% |
| Size | IP65/IP68 |
| Working Temperature | |
| Download |
|
Model: LPH-18-12, LPH-18-24
Slim plastic case with IP67 level.Economical design, high reliability. Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100). -30~70℃ wide operation range. Short circuit, over loaded, over voltage, over temperature protections
LPL-18
| Input Voltage | 140×30×22mm(L×W×H) |
| Output Voltage | 90-132VAC 47-63Hz |
| Output Signal | 12V 1.5A, 24V 0.75A |
| Output Current | 18W |
| Power | NA |
| Zones | 80% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: LPL-18-12, LPL-18-24
Slim plastic case with IP67 level.Economical design, high reliability. Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100). -30~70℃ wide operation range. Short circuit, over loaded, over voltage, over temperature protections

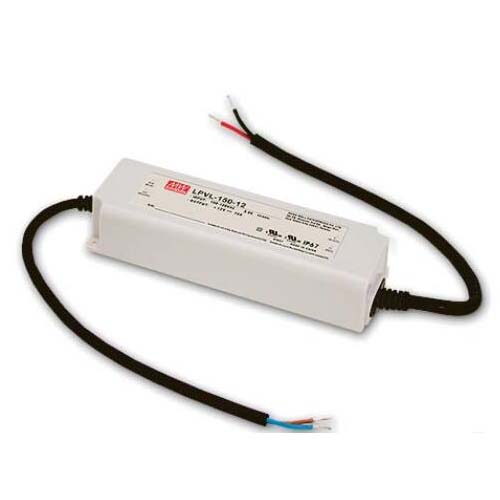

LPV-150
| Input Voltage | 191×63×37.5mm(L×W×H) |
| Output Voltage | 180-305VAC 47-63Hz |
| Output Signal | 12V 10.0A, 24V 6.3A |
| Output Current | 150W |
| Power | NA |
| Zones | 87% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: LPV-150-12, LPV-150-24
Slim plastic case with IP67 level.Economical design, high reliability. Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100). -30~70℃ wide operation range. Short circuit, over loaded, over voltage, over temperature protections

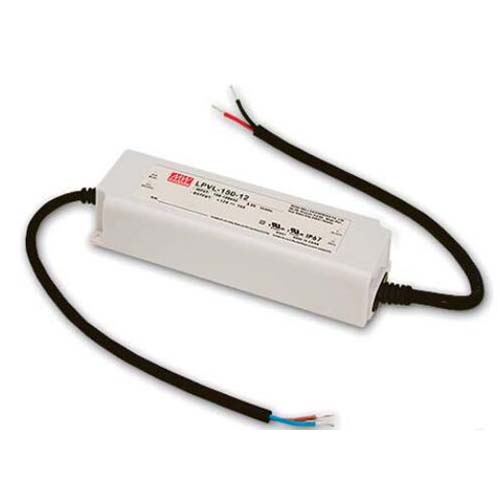

LPVL-150
| Input Voltage | 191×63×37.5mm(L×W×H) |
| Output Voltage | 90-132VAC 47-63Hz |
| Output Signal | 12V 10.0A, 24V 6.3A |
| Output Current | 150W |
| Power | NA |
| Zones | 87% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: LPVL-150-12, LPVL-150-24
Slim plastic case with IP67 level.Economical design, high reliability. Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100). -30~70℃ wide operation range. Short circuit, over loaded, over voltage, over temperature protections

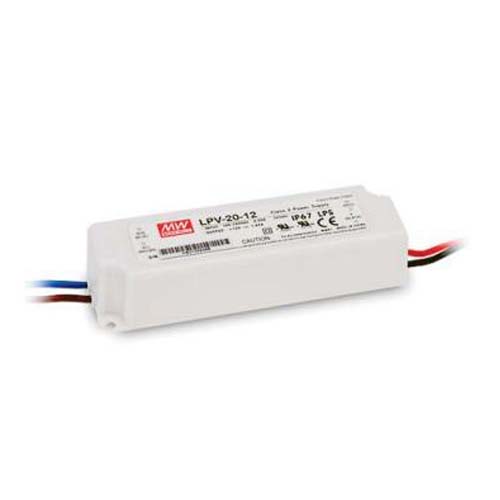

LPV-20
| Input Voltage | 118×35×26mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 3.0A, 12V 1.67A, 24V 0.84A |
| Output Current | 20W |
| Power | NA |
| Zones | 81% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: LPV-20-5, LPV-20-12, LPV-20-24
Slim plastic case with IP67 level.Economical design, high reliability. Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100). -30~70℃ wide operation range. Short circuit, over loaded, over voltage, over temperature protections
LPV-35
| Input Voltage | 148×40×30mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 5.0A, 12V 3.0A, 24V 1.5A |
| Output Current | 35W |
| Power | NA |
| Zones | 84% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: LPV-35-5, LPV-35-12, LPV-35-24
Slim plastic case with IP67 level.Economical design, high reliability. Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100). -30~70℃ wide operation range. Short circuit, over loaded, over voltage, over temperature protections

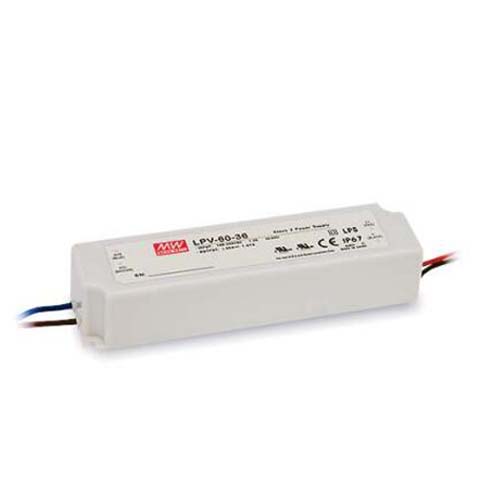

LPV-60
| Input Voltage | 162.5×42.5×32mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 8.0A, 12V 5.0A, 24V 2.5A |
| Output Current | 60W |
| Power | NA |
| Zones | 83% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: LPV-60-5, LPV-60-12, LPV-60-24
Slim plastic case with IP67 level.Economical design, high reliability. Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100). -30~70℃ wide operation range. Short circuit, over loaded, over voltage, over temperature protections

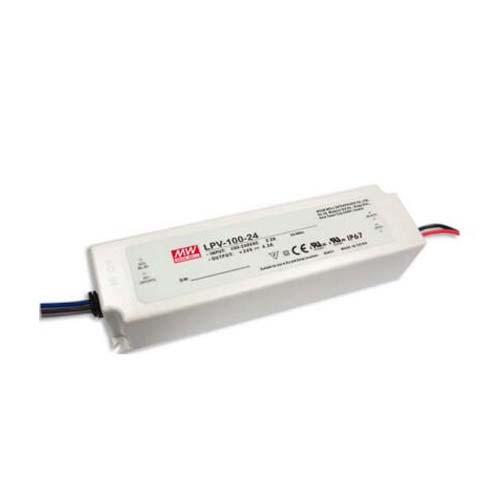

LPV-100
| Input Voltage | 190×52×37mm(L×W×H) |
| Output Voltage | 90-264VAC 47-63Hz |
| Output Signal | 5V 12.0A, 12V 8.5A, 24V 4.2A |
| Output Current | 100W |
| Power | NA |
| Zones | 85% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: LPV-100-5, LPV-100-12, LPV-100-24
Slim plastic case with IP67 level.Economical design, high reliability. Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100). -30~70℃ wide operation range. Short circuit, over loaded, over voltage, over temperature protections
