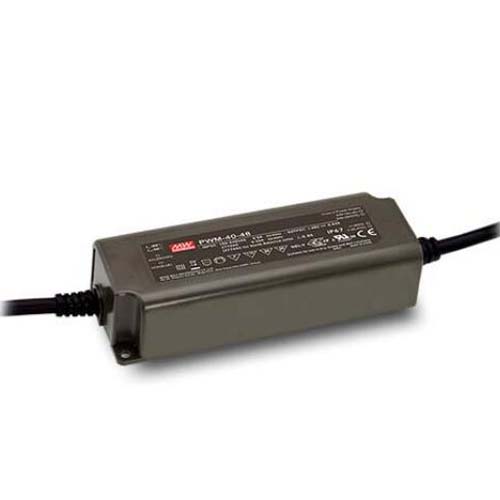

PWM-40
| Input Voltage | 150×53×35mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 3.34A, 24V 1.67A |
| Output Current | 40W |
| Power | 0.95 |
| Zones | 86% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: PMW-40-12, PMW-40-24
90~305VAC input, built-in active PFC function. Fully isolated plastic case with IP67 level. Constant voltage PWM style output. Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)

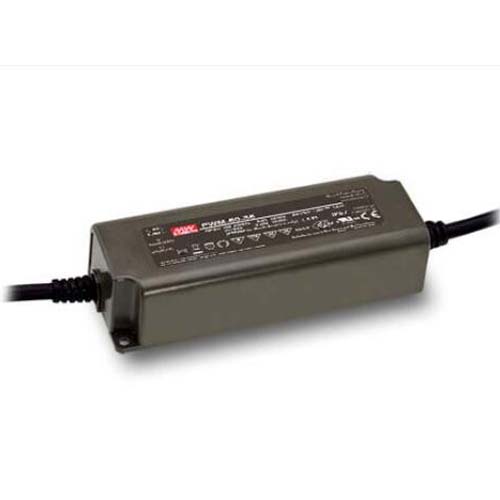

PWM-60
| Input Voltage | 150×53×35mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 5.0A, 24V 2.5A |
| Output Current | 60W |
| Power | 0.95 |
| Zones | 86% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: PMW-60-12, PMW-60-24
90~305VAC input, built-in active PFC function. Fully isolated plastic case with IP67 level. Constant voltage PWM style output. Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)

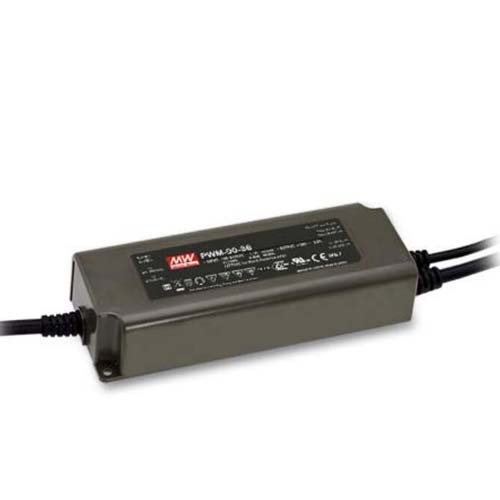

PWM-90
| Input Voltage | 171×63×37.5mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 7.5A, 24V 3.75A |
| Output Current | 90W |
| Power | 0.95 |
| Zones | 88% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: PMW-90-12, PMW-90-24
90~305VAC input, built-in active PFC function. Fully isolated plastic case with IP67 level. Constant voltage PWM style output. Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)

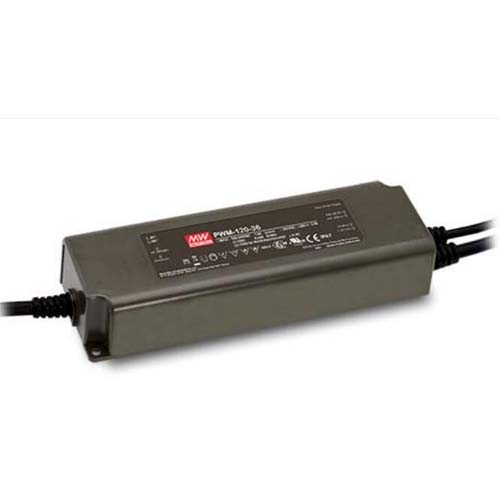

PWM-120
| Input Voltage | 191×63×37.5mm(L×W×H) |
| Output Voltage | 90-305VAC 47-63Hz |
| Output Signal | 12V 10.0A, 24V 5.0A |
| Output Current | 120W |
| Power | 0.95 |
| Zones | 88% |
| Size | IP67 |
| Working Temperature | |
| Download |
|
Model: PMW-120-12, PMW-120-24
90~305VAC input, built-in active PFC function. Fully isolated plastic case with IP67 level. Constant voltage PWM style output. Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)
